EXAIR NEMA 12 Cabinet Cooler® Systems, Cont Oper

Product	BTU/Hr	Solenoid Valve (standard) or ETC (upgrade)	Voltage	Material	Type	High Temp or NHP	Vortex capacity	Air Inlet	Filter
	275	N/A	N/A	Stainless Steel Vortex Tube - Aluminum Outer Components	NEMA 12 Continuous Operation Cabinet Cooler	N/A	4 SCFM (113 SLPM)	1/8 MNPT	N/A
	550	N/A	N/A	Stainless Steel Vortex Tube - Aluminum Outer Components	NEMA 12 Continuous Operation Cabinet Cooler	N/A	8 SCFM (227 SLPM)	1/8 MNPT	N/A
	1000	N/A	N/A	Stainless Steel Vortex Tube - Aluminum Outer Components	NEMA 12 Continuous Operation Cabinet Cooler	N/A	15 SCFM (425 SLPM)	1/4 MNPT	N/A
	1700	N/A	N/A	Stainless Steel Vortex Tube - Aluminum Outer Components	NEMA 12 Continuous Operation Cabinet Cooler	N/A	25 SCFM (708 SLPM)	1/4 MNPT	N/A
	2000	N/A	N/A	Stainless Steel Vortex Tube - Aluminum Outer Components	NEMA 12 Continuous Operation Cabinet Cooler	N/A	30 SCFM (850 SLPM)	1/4 MNPT	N/A
	2800	N/A	N/A	Stainless Steel Vortex Tube - Aluminum Outer Components	NEMA 12 Continuous Operation Cabinet Cooler	N/A	40 SCFM (1133 SLPM)	1/4 MNPT	N/A
	3400	N/A	N/A	Stainless Steel Vortex Tube - Aluminum Outer Components	NEMA 12 Continuous Operation Cabinet Cooler	N/A	50 SCFM (1416 SLPM)	1/4 MNPT	N/A
	4000	N/A	N/A	Stainless Steel Vortex Tube - Aluminum Outer Components	NEMA 12 Continuous Operation Cabinet Cooler	N/A	60 SCFM (1699 SLPM)	1/4 MNPT	N/A
	4800	N/A	N/A	Stainless Steel Vortex Tube - Aluminum Outer Components	NEMA 12 Continuous Operation Cabinet Cooler	N/A	70 SCFM (1982 SLPM)	1/4 MNPT	N/A
	5600	N/A	N/A	Stainless Steel Vortex Tube - Aluminum Outer Components	NEMA 12 Continuous Operation Cabinet Cooler	N/A	80 SCFM (2265 SLPM)	1/4 MNPT	N/A

Specifications:

Applications:

NEMA 12 Cabinet Cooler Advantages:

• Low cost
• Compact
• Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
• Quiet
• Install in minutes
• Maintain NEMA 12 integrity (IP54)
• Stabilize enclosure temperature and humidity
• No CFC's
• No moving parts - maintenance free
• Mount in standard electrical knockout
• Stop nuisance tripping
• Stop heat damage
• Eliminate fans and filters
• Eliminate lost production
• Stop circuit drift
• Provide protection from dirt and dust

 Models:

NEMA 12 (IP54) Cabinet Cooler Systems, Continuous Operation
Model	Btu/hr. (Watts)
4204	275 (80)

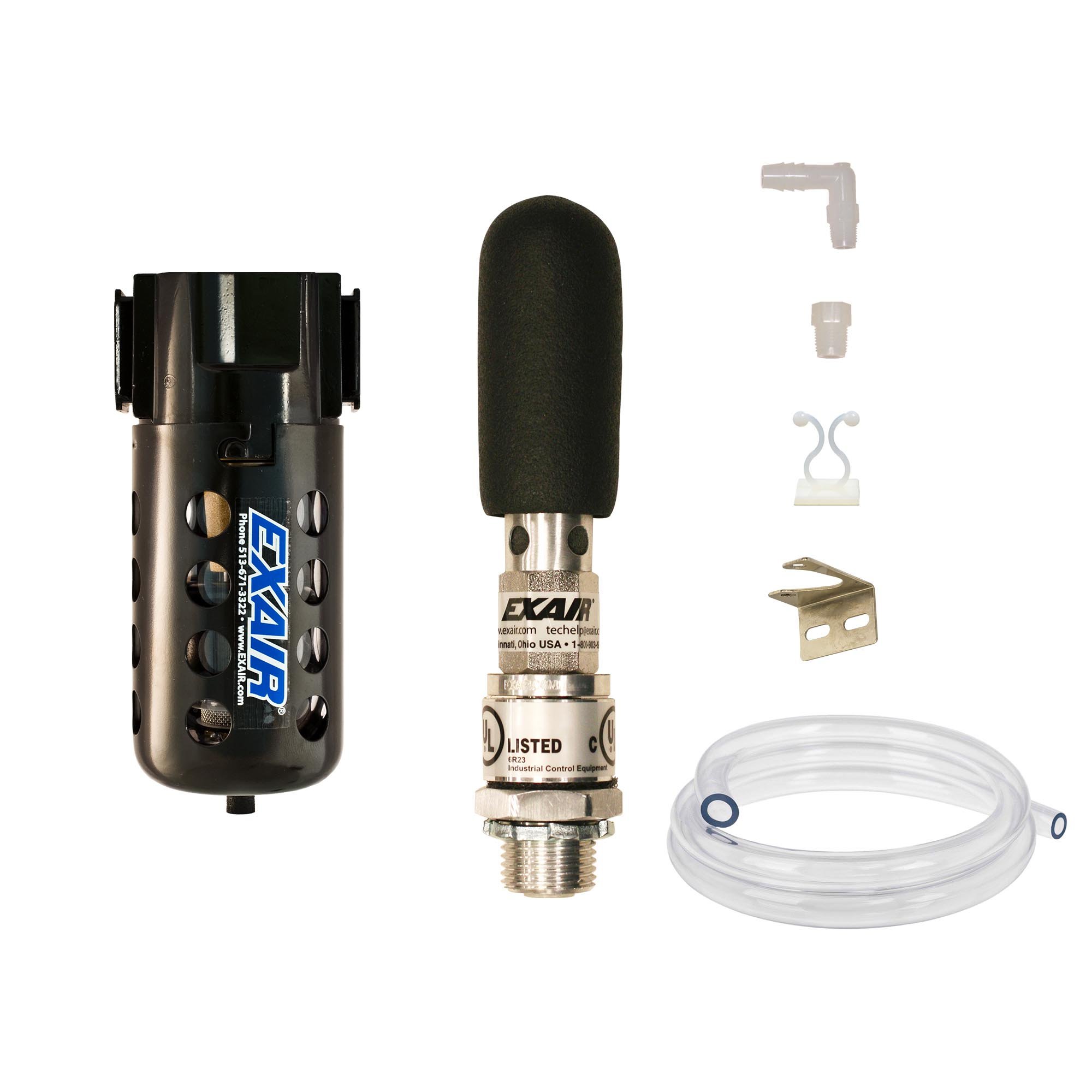

4208	550 (162)

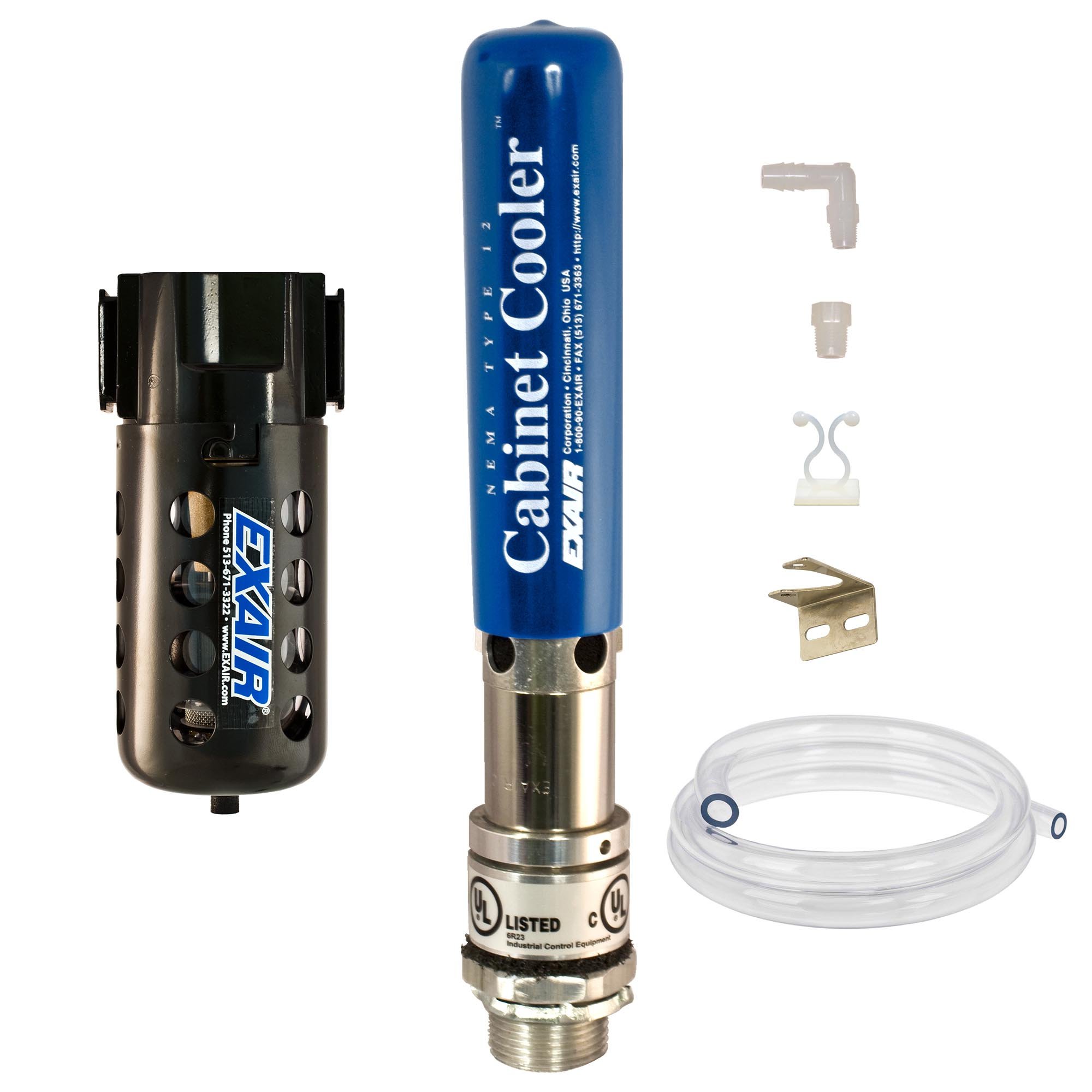

4215	1,000 (293)
4225	1,700 (498)
4230	2,000 (586)
4240	2,800 (821)
4250	3,400 (997)
4260	4,000 (1,171)

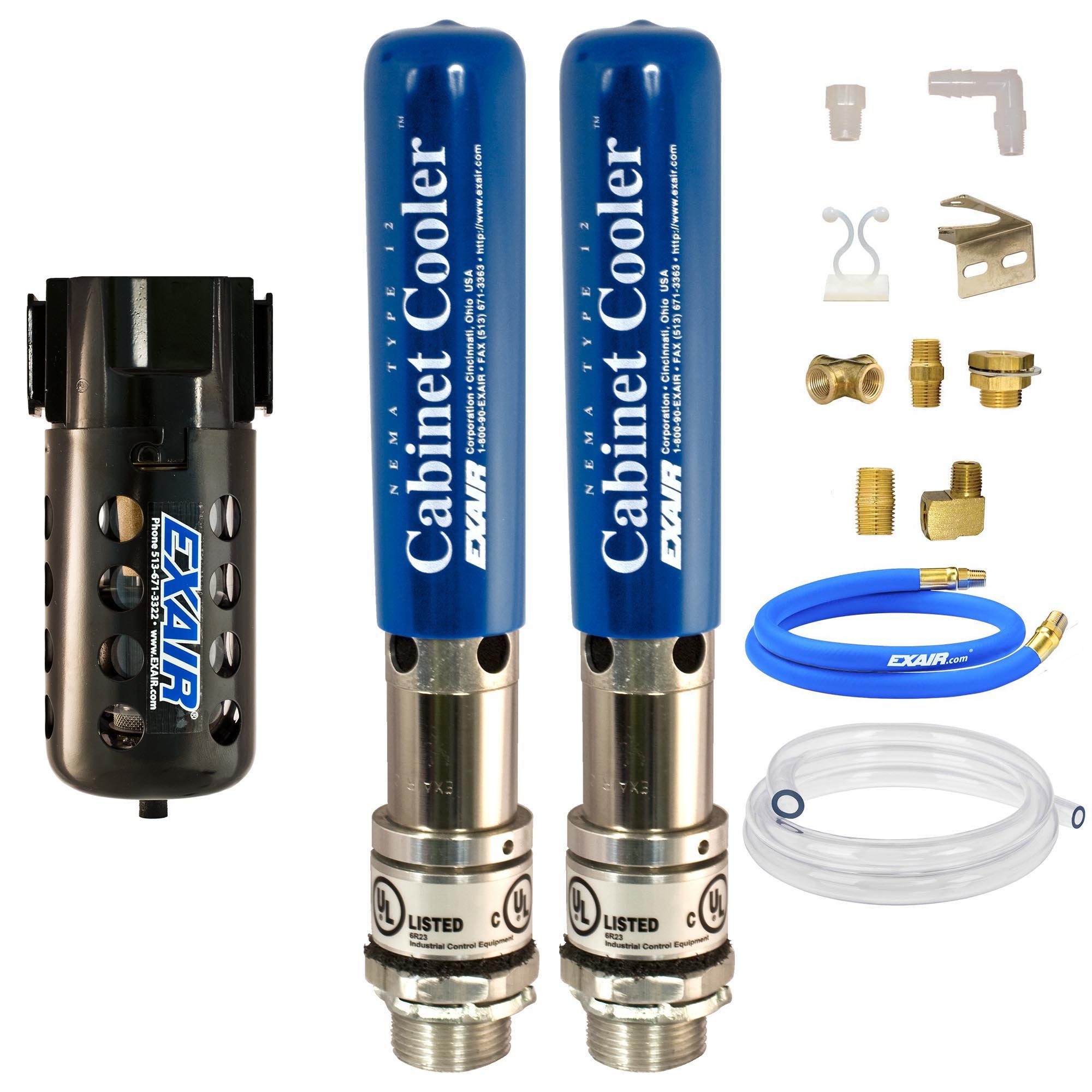

4270	4,800 (1,406)
4280	5,600 (1,641)



Accessories:

EXAIR's Side Mount Kits make mounting on the side of an electrical enclosure possible when there is limited space on the top or side. (NEMA 4 and 4X Cabinet Cooler Systems must be mounted vertically.) Side Mount Kits maintain the NEMA rating of large and small NEMA Type 12, 4, and 4X enclosures. they mount in a standard electrical knockout (1-1/2 NPS). Side Mount Kits for NEMA 12 Cabinet Cooler Systems have an aluminum construction. Those for NEMA 4 and 4X Cabinet Cooler Systems are Type 303 or Type 316 stainless steel.

EXAIR's Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, Cabinet Cooler Systems are Listed to applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.

Look for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
