Application #081018

Industry: Petrochemical

Application: Wash Water Injection

Product Description: Bete THWTZ, right-angle WL (RAWL)

Situation: A Bete customer inquired about several wash water injection nozzles. Wash water injection points are located in several areas of the refinery process. Injecting wash water into the crude oil scrubs the crude of salt and other solid particles that would cause corrosion and wear further in the system if not removed. The crude oil is washed as the first step of the refinery process, often right before the distillation tower. Further in the process there may be other wash water injection points for washing vapor and gas streams of any residual solid particles. The nozzles are inserted into the stream perpendicular to the flow but then spray co-currently with the flow direction. As space is a large concern, compact right-angle nozzle designs are requested. The construction of the nozzles should also be of a corrosion and wea-resistant material.

Solution: Bete TH, WTZ, and right-angle WL (RAWL) nozzles provide a smaller clearance diameter compared to a standard nozzle mounted on a 90° elbow. The nozzles are available in Nickel Alloys that provide superior corrosion and wear resistance. Bete will also manufacture the full lance assembly to provide the customer with one stop shopping.

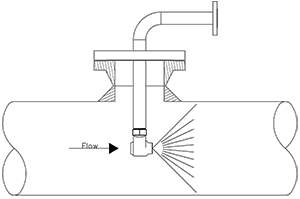

Custom Spray Nozzle Solutions – Petrochemical Wash Water Injection Drawings and Sketches:

081018_appsketch



Resources

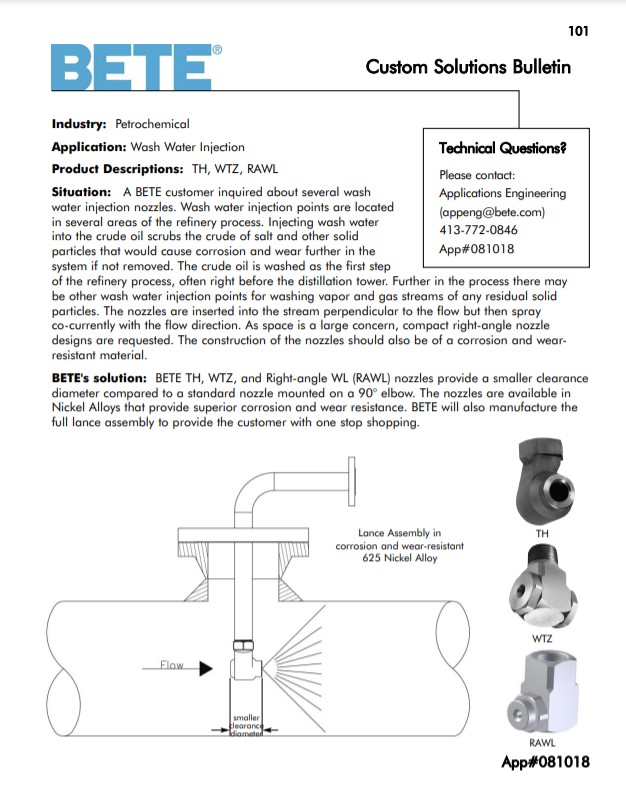

BETE Wash Water Injection 081018
