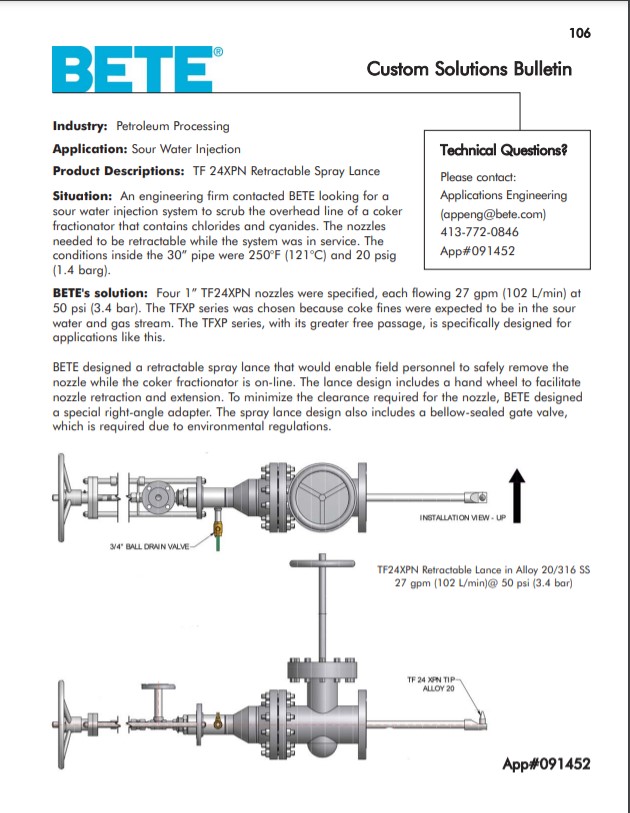

Custom Spray Nozzle Solutions – Sour Water Injection System
Industry: Petroleum Processing
Application: Sour Water Injection
Product Description: Bete TF 24XPN Retractable Spray Lance
Situation: An engineering firm contacted Bete looking for a sour water injection system to scrub the overhead line of a coker fractionator that contains chlorides and cyanides. The nozzles needed to be retractable while the system was in service. The conditions inside the 30″ pipe were 250°F (121°C) and 20 psig (1.4 barg).
Solution: Four 1″ TF24XPN nozzles were specified, each flowing 27 gpm (102 L/min) at 50 psi (3.4 bar). The TFXP series was chosen because coke fines were expected to be in the sour water and gas stream. The TFXP series, with its greater free passage, is specifically designed for applications like this.
Bete designed a retractable spray lance that would enable field personnel to safely remove the nozzle while the coker fractionator is on-line. The spray lance design includes a hand wheel to facilitate nozzle retraction and extension. To minimize the clearance required for the nozzle, Bete designed a special right-angle adapter. The spray lance design also includes a bellow-sealed gate valve, which is required due to environmental regulations.

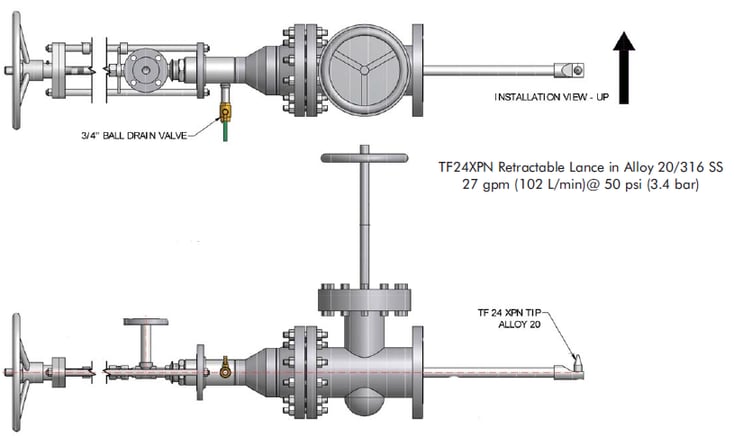

Custom Spray Nozzle Solutions – Sour Water Injection System Drawings and Sketches:
