Leak-Free, Magnetic Drive Pump Featuring Positive Displacement Sliding Vane Technology
________________________________________________________________________________________________________________________
Blackmer® MAGNES Series Magnetic Drive Pumps bring world-first set of functionality, reliability, and flexibility to critical processes in numerous markets. As the newest addition to Magnetic Drive Pump Line of sliding vane pumps, MAGNES Series Magnetic Drive Pumps are positive displacement rotary vane pumps that use a magnetic drive without dynamic seals. This self-priming magnetic drive pump provides a leak-free pumping solution for difficult to seal liquids and any liquids that are too expensive, valuable, dangerous or hazardous to leak.
MAGNES Series Magnetic Drive Pumps solve legacy pain points with technically superior functionality that’s designed for chemical and severe duty applications. Key attributes include:
- Indefinite Dry Run
- Solids Handling
- Cavitation & Vapor Mixtures Handling, Low to Zero NPSHr
- Full Curve & System Performance

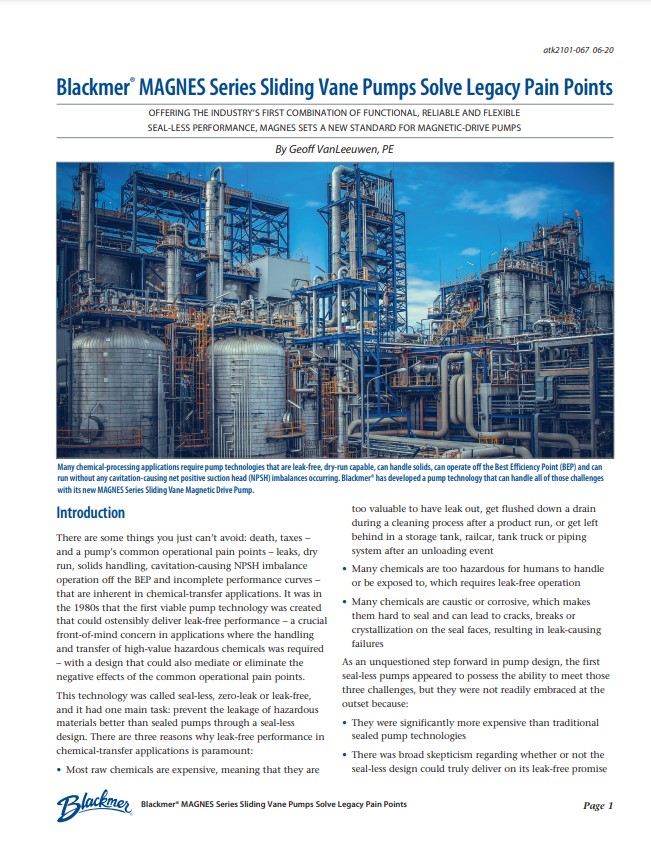

To learn more about how MAGNES solves these common issues, download the Whitepaper.
With 3- and 4-in models available in both ductile iron (MI3, MI4) and stainless-steel (MS3, MS4) construction, MAGNES Magnetic Drive Pumps boast performance up to 520 gpm at 200 psi (1,968 L/min at 13.8 bar). MAGNES Sliding Vane Pumps provide magnetic drive pump capabilities, with the innate advantages of sliding vane technology. As a true self-priming pump, it will not need to be pre-flooded prior to start-up and is well suited for continuous duty operation, since the pump has no cumulative dry run limit.
With this rotary vane magnetic drive pump design, the Blackmer MAGNES Series has combined the leak-free benefits of a magnetic drive pump, with the numerous advantages of sliding vane technology - such as self-priming, line-stripping, product recovery, dry-run capability, solids handling, thin/thick viscosity flexibility, easy maintenance and 70% to 90% pump efficiencies.
Features and Benefits
- Magnetic drive pump design is inherently leak-free
- Non-metallic, proprietary composite containment shell that provides the coupling strength of a thin wall metallic shell and the reliability of an eddy-current-free design
- Low speed operation – pumps operate at 10%-20% speed range of comparable options, while achieving the same flow and pressure outputs as other pumping technologies
- Solids handling ability – with large flow path design, and low internal flow velocity, particulates up to 1/8 inch (3 mm) can pass through without issue
- Designed for entrained vapor handling, low to zero NPSH required
- True self-priming pump, does not require filling before start-up
- Features suction lift capabilities that meet or exceed 25 ft (7.6 m) wet vacuum and 16 ft (4.9 m) dry vacuum
- Full curve performance across the entire system range, without sensitivity to a BEP curve
- Entire pump assemblies available with motor, gearbox, and baseplate
Applications
- Loading & Unloading
- Pressure Boosting Stations
- Batch Blending
- Forwarding
- Processing
- Railcar Transfer
- Tank to Truck Transfer
- Transloading
Performance and Specifications
AVAILABLE MODELS
- MI3 MS3
- MI4 MS4
VANE MATERIALS
- Duravane®
- EC Laminate
MIN/MAX SPEED (RPM)
- MI3 & MS3: <640 RPM
- MI4 & MS4: <520 RPM
VISCOSITY
- 0.2 cP – 500 cP
TEMPERATURE
- -30°F to 240°F (-34°C to 115°C)
MAXIMUM WORKING PRESSURE (MAWP)
- 225 psi (15.5 bar)
CONNECTION ORIENTATION
- Ductile Iron (standard): Side Inlet | Top Outlet - 90-deg ported
- Ductile Iron (optional): Side Inlet | Side Outlet - 180-deg inline ported
- Stainless (standard): Side Inlet | Top Outlet - 90-deg ported
DIFFERENTIAL PRESSURE
- 200 psi (13.8 bar)
- 660 ft @ 0.7 SG (201 m @ 0.7 SG)
- 460 ft @ 1.0 SG (140 m @ 1.0 SG)
- 355 ft @ 1.3 SG (108 m @ 1.3 SG)
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
NOMINAL FLOW RATE RANGE
- MI3 & MS3: 75 - 260 gpm (284 - 984 L/min)
- MI4 & MS4: 200 - 520 gpm (757 - 1,968 L/min)
PRIMARY MATERIALS OF CONSTRUCTION
- MI3: 180-deg inline ported Ductile Iron | 90-deg ported Cast Iron
- MI4: Ductile Iron
- MS3 & MS4: Stainless Steel
Materials of Construction
| PARTS | MI3 | MI4 | MS3 | MS4 |
|---|---|---|---|---|
| Cylinder | Inline: Ductile Iron, ASTM A536 90-deg: Cast Iron, ASTM A48 | Ductile Iron, ASTM A536 | 17-4 PH Stainless Steel | |
| Heads | Ductile Iron, ASTM A536 | 17-4 PH Stainless Steel | ||
| Containment Shell | PEEK Composite | PEEK Composite | ||
| Magnets | Neodymium Iron Boron | Neodymium Iron Boron | ||
Pump Options
| OPTIONS | DETAILS |
|---|---|
| ORIENTATION OPTIONS | Right Hand: INLET is to the right, when looking from driven side Left Hand: INLET is to the left, when looking from driven side |
| PORTING OPTIONS | Top Outlet: Outlet 90° offset from inlet Side Outlet: Outlet 180° inline porting (MI3, MI4) |
| CONNECTION OPTIONS | ANSI Class 150, RF Flanges Butt Weld NPT (available for MI3, MI4) |
| MOUNTING OPTIONS | Pump Only Unit: Pump, Motor, Gear Reducer, Baseplate, Couplings, Guards |
Vane Options
| MATERIAL | TEMPERATURE LIMITS | VISCOSITY | NOTES |
|---|---|---|---|
| Duravane | -30°F to 240°F (-34°C to 115°C) | 0.2 cP – 500 cP | Self-lubricating with broad chemical compatibility |
| EC Laminate | -30°F to 240°F (-34°C to 115°C) | 0.2 cP – 500 cP | Self-lubricating & abrasion resistant |
Elastomer Options
| MATERIAL | TEMPERATURE LIMITS |
|---|---|
| FKM | -15°F to 240°F (-26°C to 115°C) |
| PTFE | -30°F to 240°F (-34°C to 115°C) |
| Buna-N Nitrile | -30°F to 240°F (-34°C to 115°C) |

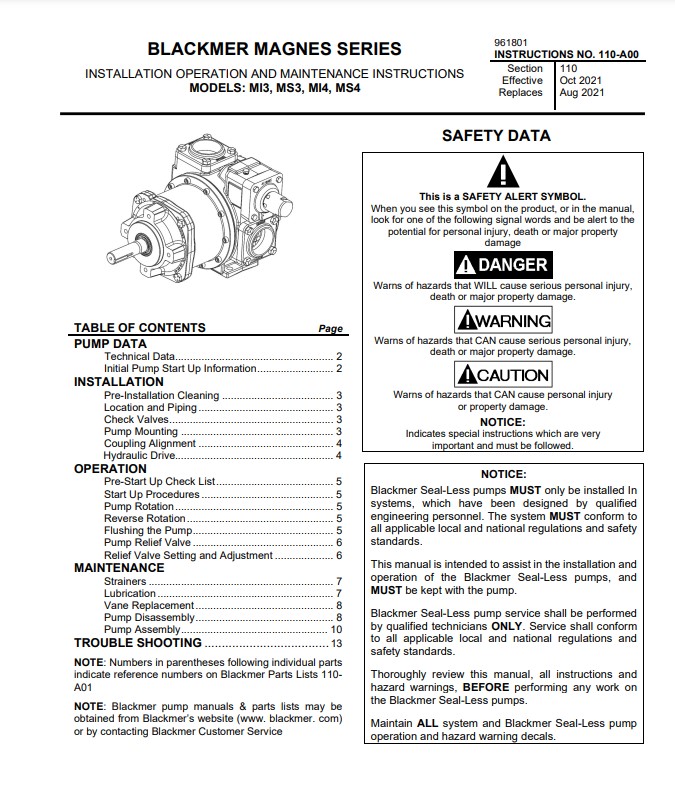

Maintenance Kits
| MODEL(S) | DESCRIPTION | PART NUMBER | ||
|---|---|---|---|---|
| MI3 | Kit - Maintenance, Wear Parts | 899097 | ||
| MI3 | Kit - Rebuild, Wear Parts & Rotor/Shaft | 899197 | ||
| MS3 | Kit - Maintenance, Wear Parts | 899098 | ||
| MS3 | Kit - Rebuild, Wear Parts & Rotor/Shaft | 899198 | ||
| MI4 | Kit - Maintenance, Wear Parts | 899083 | ||
| MI4 | Kit - Rebuild, Wear Parts & Rotor/Shaft | 899183 | ||
| MS4 | Kit - Maintenance, Wear Parts | 899084 | ||
| MS4 | Kit - Rebuild, Wear Parts & Rotor/Shaft | 899184 | ||
