BETE IS Rectangular Pattern Spray Nozzles

Bete IS Rectangular Pattern Nozzle  Design Features

  • Effective wherever rectangular pattern is required
  • High energy efficiency
  • Low coefficient of discharge and large unimpeded openings
  • Excellent clog resistance
  • Mounted in opposing pairs
  • Male connection
bete is

Spray Characteristics of the Bete IS Rectangular Pattern Nozzle:

  • Pattern widths of 18″ (457.2 mm) to 120″ (3,048 mm) can be achieved
  • Good distribution with pressures as low as 0.5 psi (0.03 bar)
  • Thick bands of droplets from opposing pairs intersect and fall uniformly

Spray Pattern: Rectangular

Flow rates: 0.5 to 164 gpm (1.77 to 649 L/min) per pair

Standard Materials:  Brass, 303 Stainless Steel, 316 Stainless Steel and PVC


  • Distribution
  • Packing

Join our Mailing List

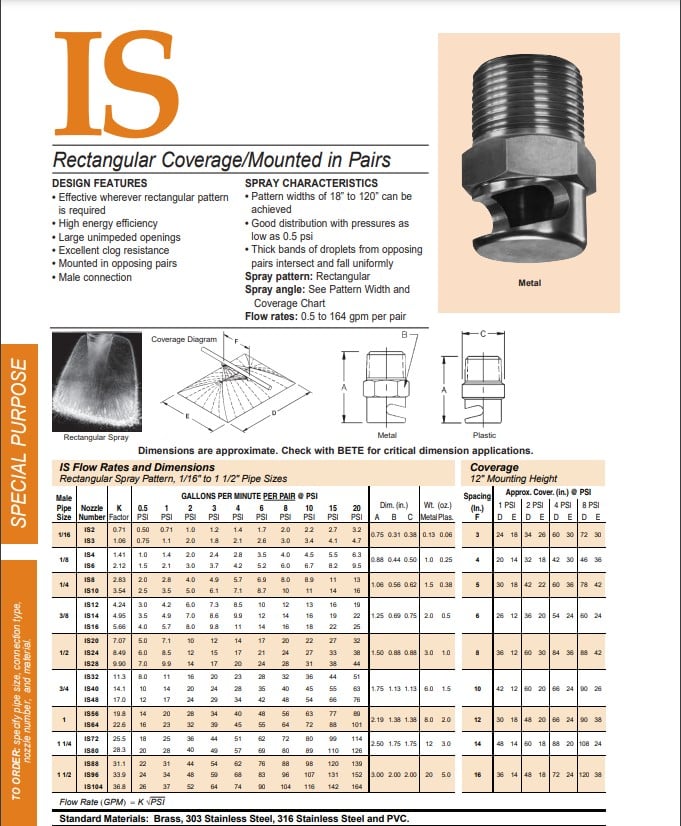

Bete IS Spray Nozzle- US Units

Size: 152 KB

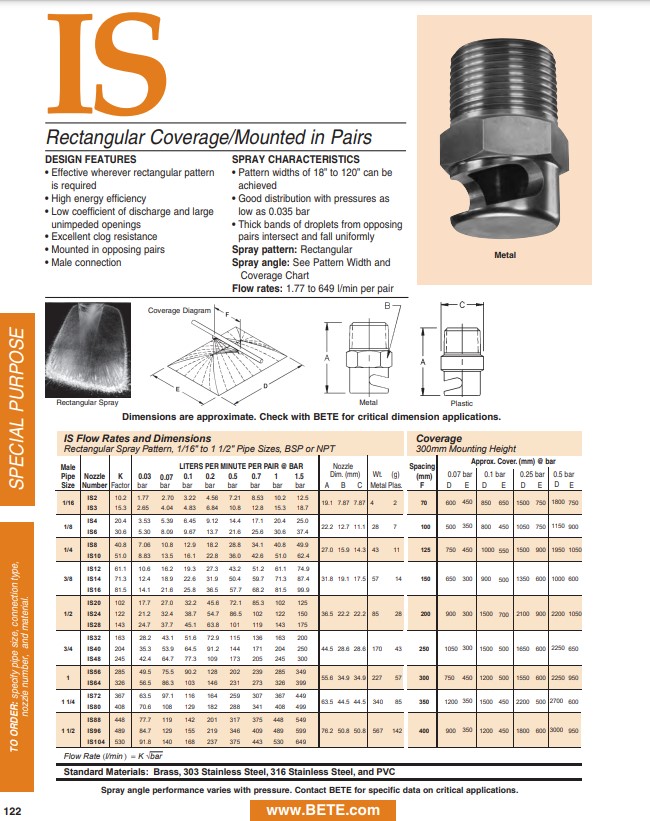

Bete IS Spray Nozzle- Metric/SI Units

Size: 435 KB

See All Products from Bete
