Alfa Laval Gamajet Bipod Attachment

For Barrel Cleaning Bung Hole Down. Barrel Cleaning has evolved immensely from the days of fill and drain. Automated barrel cleaning machines have been used more and more, making the process much easier.

The Alfa Laval Gamajet Bipod attachment was designed to allow for fast and easy placement of GJ BB and GJ 7. Its unique folding capability gives it the maximum clearance and stability for prompt and reliable placement within the barrel.

Benefits:

  • Fast, Hands-Free Barrel Cleaning
  • Primarily used in the wine Industry
  • Compatible with the GJ BB and GJ 7 Tank Cleaning Machines

Specifications:

  • Materials: 316L Stainless Steel; Nylon Feet
  • Length: 20″ (.5m)
  • Width: 7.5″ (190 mm)
  • Height: 5″ (130 mm)
  • Weight: 4lbs (2 kg)
  • Inlet Connections: 3/8″ (12mm)  NPT-Male

How the  Alfa Laval Gamajet Bipod Attachment works:

The 3/8 in. NPT Male Inlet collar gets threaded on center feeding tube. The Alfa Laval GJ BB or GJ 7 tank cleaning machine is than threaded on the  3/8 in. NPT Male Inlet collar for a secure upright hold. The Alfa Laval tank cleaning machine is placed within the bung hole, with the legs folded back for extra clearance. Once under the barrel, the legs are pulled back and unfolded to rest either on the ground or the barrel beneath.

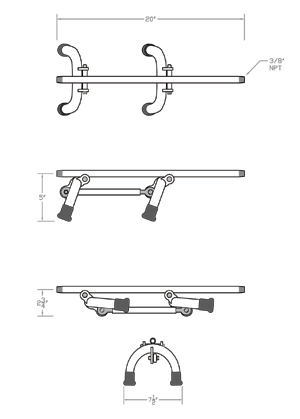

bipod-sketch

Resources

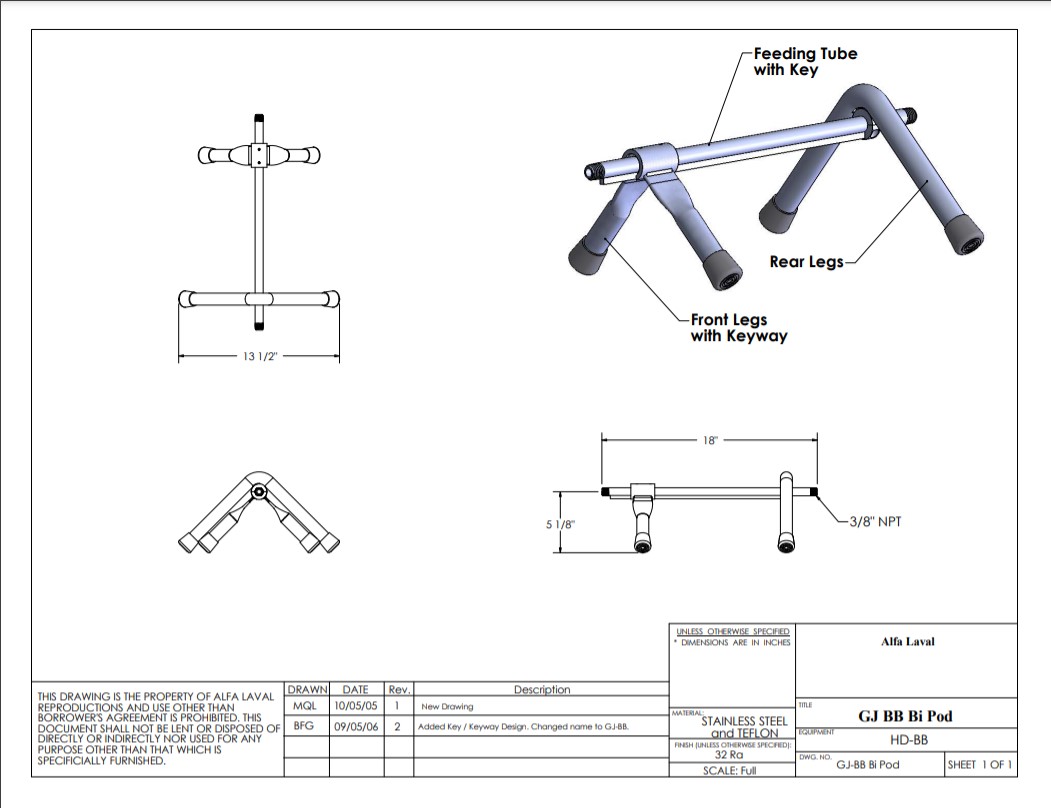

gj bb bipod engineering drawing

gj bb bipod engineering drawing

Download
