Wilden GPS820/830 CSA-Certified Bolted Metal AODD Pump

2'' | 51 mm

Features and Benefits

Wilden® GPS Series pumps, equipped with the Pro-Flo® SHIFT Air Distribution System (ADS) and available in bolted metal construction, are certified by the Canadian Standards Association (CSA) to be powered by natural gas and maintain a safe, reliable operation. They are perfect for oil and gas operations where compressed air is not readily accessible but where natural gas is plentiful.

  • NPT or BSPT threaded inlet/discharge liquid connections (GPS420)
  • DIN or ANSI flanged inlet/discharge liquid connections (GPS430) that don't require welding or nipple attachment
  • GPS Series pumps utilize the Wilden Pro-Flo SHIFT ADS
    • Helps plants save valuable natural gas
    • Pro-Flo SHIFT uses 60% less natural gas, without hindering performance
    • Greater flow - more gallons pumped per SCFM

AIR INLET

  • 3/4" FNPT

LIQUID INLET

  • 51mm (2")

LIQUID DISCHARGE

  • 51mm (2")

CONNECTION TYPE:

  • NPT/BSPT (Threaded)
  • DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY:

  • EZ-Install TPE – 5.5 m (18.2’) Dry, 9.0 m (29.5’) Wet
  • Full-Stroke PTFE – 6.1 m (20.0’) Dry, 9.0 m (29.5’) Wet

MAX FLOW RATE

  • EZ-Install TPE – 645 lpm (171 gpm)
  • Full-Stroke PTFE – 636 lpm (168 gpm)

MAX PRESSURE

  • 6.9 bar (100 psi)

MAX DIAMETER SOLIDS

  • 6.4 mm (1/4”)

Displacement Per Stroke*

  • EZ-Install TPE – 2.1 L (0.55 gal)
  • Full-Stroke PTFE – 2.4 L (0.63 gal)

1 cycle = 2 strokes*

Wetted Housings

Material Ship Weight
Aluminum 47 kg (104 lb) (PS820)
54 kg (118 lb) (PS830)
Stainless Steel 73 kg (161 lb) (PS820)
81 kg (178 lb) (PS830)



Non-Wetted Housings

Description  Material
Center Section Aluminum, Stainless Steel
Air Valve Aluminum, Stainless Steel
Air Chamber Aluminum, Stainless Steel



Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
PTFE* 4°C to 104°C (40°F to 220°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only

Resources

WILDEN GPS Series - Flyer

WILDEN GPS Series - Flyer

Download

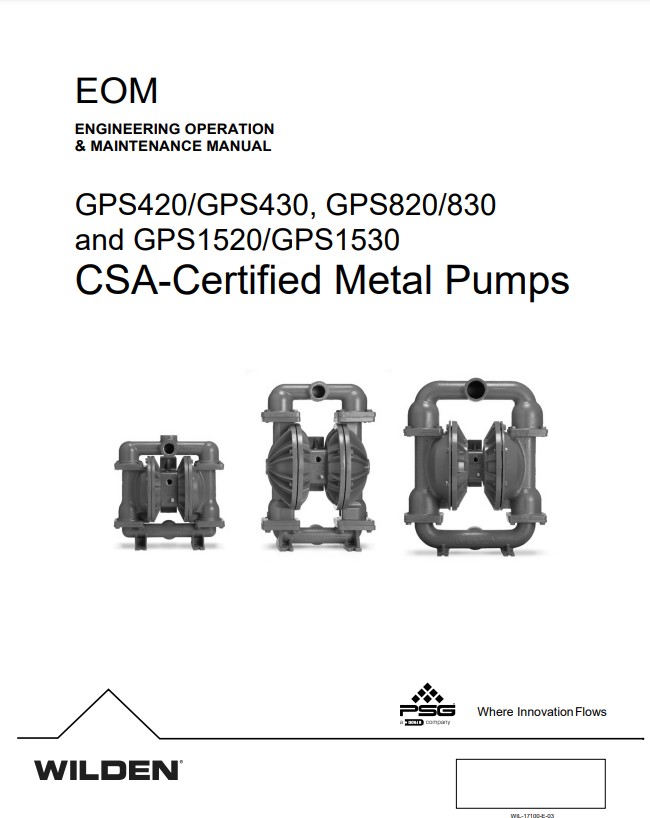

WILDEN GPS420-430, GPS820/830, GPS1520-1530 - EOM

WILDEN GPS420-430, GPS820/830, GPS1520-1530 - EOM

Download

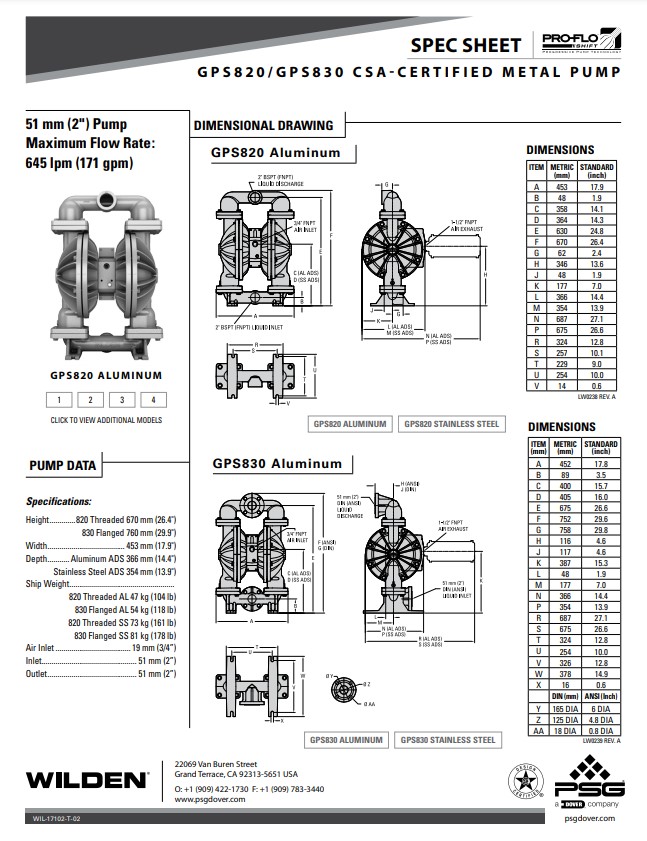

WILDEN GPS820-830 - Spec Sheet

WILDEN GPS820-830 - Spec Sheet

Download
