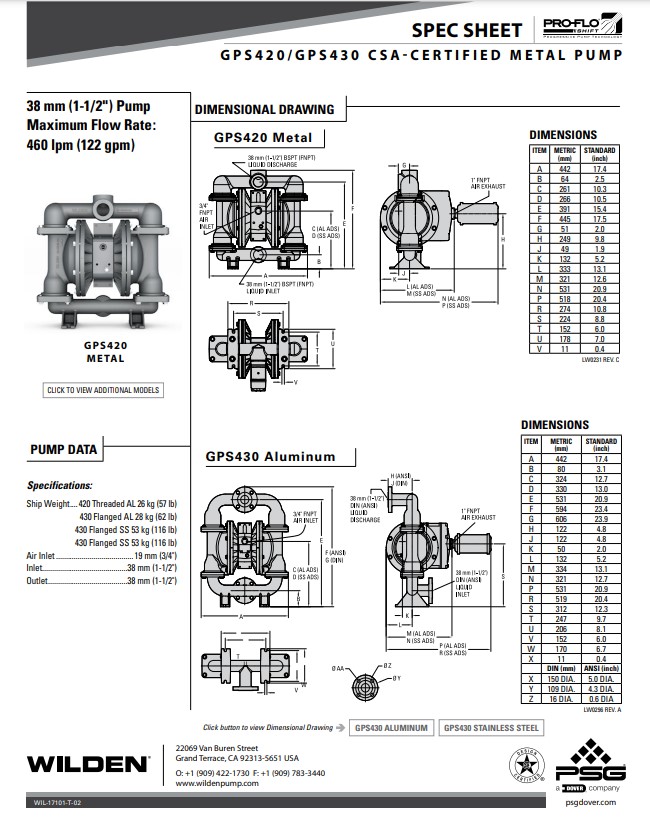

1-1/2'' | 38 mm
Features and Benefits
Wilden® GPS Series pumps, equipped with the Pro-Flo® SHIFT Air Distribution System (ADS) and available in bolted metal construction, are certified by the Canadian Standards Association (CSA) to be powered by natural gas and maintain a safe, reliable operation. They are perfect for oil and gas operations where compressed air is not readily accessible but where natural gas is plentiful.
- NPT or BSPT threaded inlet/discharge liquid connections (GPS420)
- DIN or ANSI flanged inlet/discharge liquid connections (GPS430) that don't require welding or nipple attachment
- GPS Series pumps utilize the Wilden Pro-Flo SHIFT ADS
- Helps plants save valuable natural gas
- Pro-Flo SHIFT uses 60% less natural gas, without hindering performance
- Greater flow - more gallons pumped per SCFM
AIR INLET
- 3/4" FNPT
LIQUID INLET
- 38mm (1-1/2")
LIQUID DISCHARGE
- 38mm (1-1/2")
CONNECTION TYPE:
- NPT/BSPT (Threaded)
- DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY:
- EZ-Install TPE – 4.7 m (15.3) Dry, 9.0 m (29.5’) Wet
- Full-Stroke PTFE – 4.5 m (14.8’) Dry, 8.6 m (28.4’) Wet
MAX FLOW RATE
- EZ-Install TPE – 441 lpm (117 gpm)
- Full-Stroke PTFE – 460 lpm (122 gpm)
MAX PRESSURE
- 6.9 bar (100 psi)
MAX DIAMETER SOLIDS
- 6.4 mm (1/4”)
Displacement Per Stroke*
- EZ-Install TPE – 0.8 L (0.22 gal)
- Full-Stroke PTFE – 0.9 L (0.24 gal)
1 cycle = 2 strokes*
Wetted Housings
| Material | Ship Weight |
| Aluminum | 26 kg (57 lb) (PS420) 28 kg (62 lb) (PS430) |
| Stainless Steel | 50 kg (111 lb) (PS420) 53 kg (116 lb) (PS430) |
Non-Wetted Housings
| Description | Material |
| Center Section | Aluminum, Stainless Steel |
| Air Valve | Aluminum, Stainless Steel |
| Air Chamber | Aluminum, Stainless Steel |
Elastomer Options
| Material | Temperature Limits |
| Buna-N | -12°C to 82°C (10°F to 180°F) |
| PTFE* | 4°C to 104°C (40°F to 220°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
