LAKOS JPX-JPL Standard Efficiency Separator

Standard Efficiency Industrial Liquid-Solid Separators

________________________________________________________________________________________________________________________

The LAKOS Industrial JPX-JPL line of Separators are designed to fit a wide variety of commercial applications ranging from the oil and gas industry to the primary metals industry and everything in between. The JPX-JPL are the ideal solution to increase process efficiency, reduce maintenance costs, and lower energy costs for an array of industrial and commercial applications.

• Filtration performance is independently tested and rated to remove up to 98% of solids 74 microns and larger in a single pass.
• Continuous centrifugal filtration with no backwashing or internal moving parts; automated periodic purging eliminates maintenance.
• Preferred filtration choice for small orifice and spray nozzle protection, heat exchangers, pits, sumps, basin, pre-filtration, and waste minimization.

Flow Range: 4 – 12,750 US GPM (1 – 2,895 m³/hr)
Maximum Pressure: 150 psi (10.3 bar)

What Can a LAKOS Separator Offer You?

Continuous Filtration	Cost Effectiveness	Low-Upkeep
LAKOS Separators are designed to operate continuously with no routine shutdowns for cleaning or maintenance.	Reduces defects, replacement parts, and maintenance cycles, while increasing efficiency and product consistency.	No screens or filter elements to clean or replace. Centrifugal action removes debris without restricting flow or the mess of a filter.



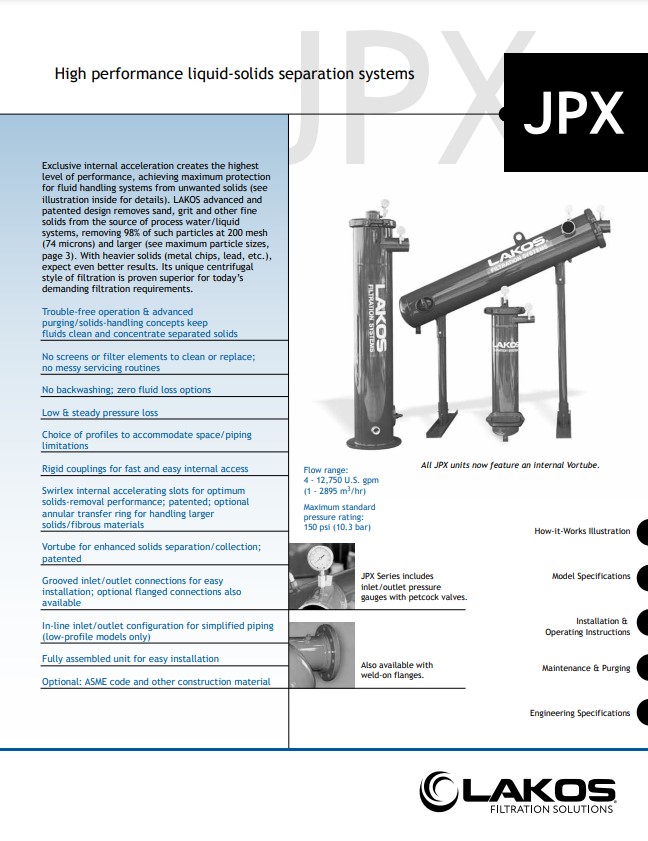

Specifications (JPX)

Models*	Flow Range		Inlet/ Outlet Size**	Connections		Purge Size Male NPT	Solids Collection Capacity		Dry Weight
	US GPM	m3/hr		Inlet/ Outlet	Top Access		gal.	liters	lbs.	kg
JPX-0004	4-10	1-2.5	1/2″ NPT**	G	G	1″	0.09	0.3	23	10.4
JPX-0010	10-20	2.5-4.5	3/4 NPT**	G	G	1″	0.11	0.4	48	21.8
JPX-0016	16-30	4-7	1″	G	G	1″	0.15	0.6	53	24.0
JPX-0028	28-45	7-10	1-1/4″	G	G	1-1/2″	0.15	0.6	53	24.0
JPX-0038	38-65	9-15	1-1/2″	G	G	1-1/2″	0.4	1.5	107	48.5
JPX-0060	60-100	14-23	2″	G	G	1-1/2″	0.8	3.0	188	85.3
JPX-0085	85-145	19-33	2-1/2″	G	G	1-1/2″	0.8	3.0	229	103.9
JPX-0130	130-225	30-51	3″	G	G	1-1/2″	0.8	3.0	241	109.3
JPX-0200-L	200-325	45-74	4″	G	G	1-1/2″	1.6	6.1	448	203.2
JPX-0200-V	200-325	45-74	4″	G	G	1-1/2″	4.4	16.7	384	174.2
JPX-0285-L	285-525	65-120	4″	G	G	1-1/2″	2.1	7.9	579	262.6
JPX-0285-V	285-525	65-120	4″	G	G	1-1/2″	5.4	20.5	488	221.4
JPX-0450-L	450-825	102-187	6″	G	G	1-1/2″	2.8	10.6	763	346.1
JPX-0450-V	450-825	102-187	6″	G	G	1-1/2″	6.7	25.4	690	313.0
JPX-0650-L	650-1200	150-275	6″	G	G	1-1/2″	4.3	16.3	966	438.2
JPX-0650-V	650-1,200	150-275	6″	G	G	1-1/2″	10.4	39.4	921	417.8
JPX-1160-L	1,160-2,150	265-490	8″	G	G	1-1/2″	8.6	32.6	1,388	629.6
JPX-1160-V	1,160-2,150	265-490	8″	G	G	1-1/2″	20.5	77.6	1,378	622.3
JPX-1850-L	1,850-3,400	420-775	10″	G	F	2″	15.0	56.8	2,141	971.1
JPX-1850-V	1,850-3,400	420-775	10″	G	F	2″	31.5	119.2	2,255	1,023
JPX-2650-L	2,650-4,900	600-1,115	12″	G	F	2″	23.5	89.0	3,664	1,662
JPX-2650-V	2,650-4,900	600-1,115	12″	G	F	2″	51.1	193.4	3,186	1,445
JPX-4200-L	4,200-7,800	950-1,775	16″	G	F	3″	52.2	197.6	6,024	2,732
JPX-4200-V	4,200-7,800	950-1,775	16″	G	F	3″	99.3	375.9	5,761	2,613
JPX-6700-L	6,700-12,750	1,520-2,895	20″	G	F	3″	81.0	306.6	8,476	3,845
JPX-6700-V	6,700-12,750	1,520-2,895	20″	F	F	3″	162.3	614.4	8,092	3,671



Dimensions Low Flow Rates (JPX)

Models	Dim A		Dim B		Dim C		Dim D		Dim E
	inches	mm	inches	mm	inches	mm	inches	mm	inches	mm
JPX-0004	27-9/16″	699	7-1/2″	191	6″	152	7-5/8″	194	3-1/2″	89
JPX-0010	31-13/16″	808	8-15/16″	227	7″	178	7-5/8″	194	4-1/2″	114
JPX-0016	33-1/8″	842	6″	152	7″	178	7-15/16″	202	4-1/2″	114
JPX-0028	36-15/16″	938	10-7/8″	276	7″	178	8-1/16″	205	5-9/16″	141
JPX-0038	39-1/2″	1003	11″	279	8″	203	8-1/8″	206	6-5/8″	168
JPX-0060	48-13/16″	1239	14-3/16″	360	11″	279	8-7/8″	225	8-5/8″	219
JPX-0085	56-5/8″	1438	14-3/16″	360	15″	381	9-5/8″	244	8-5/8″	219
JPX-0130	59-3/4″	1518	14-3/16″	360	16″	406	10-1/2″	267	8-5/8″	219



Dimensions (JPX-L)

Models

Dim A

Dim B

Dim C

Dim D

Dim E

Dim F

inches

mm

inches

mm

inches

mm

inches

mm

inches

mm

inches

mm

JPX-0200-L

71″

1,803

65-1/4″

1,657

40″

1,016

21″

533

10-3/4″

273

13″

330

JPX-0285-L

78-1/2″

1,994

79-5/8″

2,022

40″

1,016

21″

533

12-3/4″

324

15-7/8″

403

JPX-0450-L

85-11/16″

2,176

94-5/16″

2,396

40″

1,016

24″

610

14″

356

15-1/4″

387

JPX-0650-L

92″

2,337

106-1/8″

2,696

40″

1,016

24″

610

16″

406

17-7/8″

453

JPX-1160-L

104-3/4″

2,661

127-3/16″

3,231

40″

1,016

30″

762

20″

508

21-13/16″

554

JPX-1850-L

113-7/16″

2,881

150-3/8″

3,820

40″

1,016

33″

838

24″

610

34-1/8″

867

JPX-2650-L

126-1/2″

3,213

165-13/16″

4,212

60″

1,524

38″

965

28″

711

37″

940

JPX-4200-L

149-1/4″

3,791

208″

5,283

60″

1,524

51″

1,295

36″

914

47-5/8″

1,210

JPX-6700-L

168-1/4″

4,274

244-1/2″

6,210

60″

1,524

60″

1,524

42″

1,067

53-1/2″

1,360



Dimensions (JPX-V)

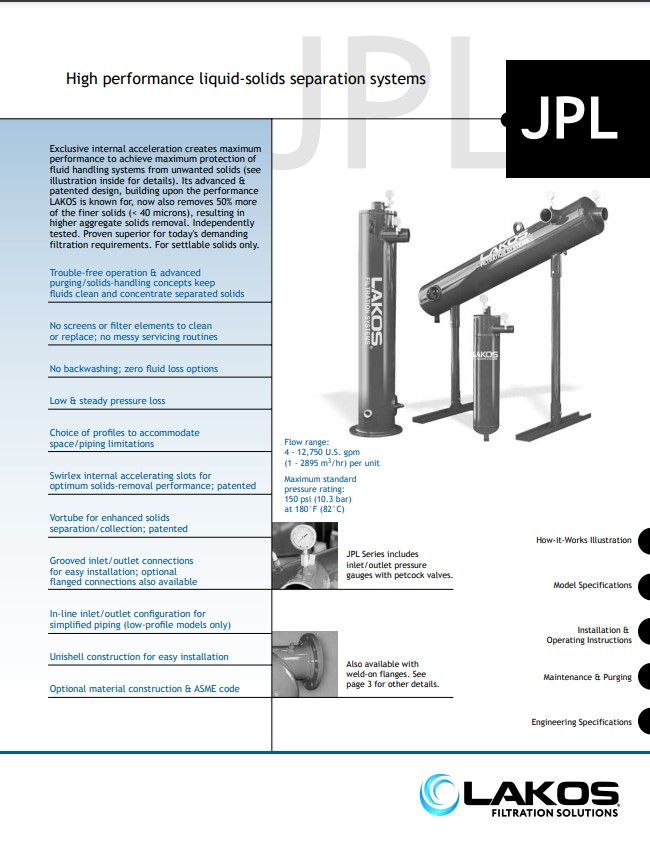

Specifications (JPL)
