Wilden T810 Brahma Turbo-Flo AODD Pumps

2″ | 51 mm

Wilden T810 Brahma Turbo-Flo AODD Pump was specifically designed for maximum solids passage and high performance in the toughest applications.

Because of its unique top inlet, bottom discharge orientation and flap valves, the T810 Brahma allows passage of large-size solids and avoids damage from product entrapment and settling of solids in intermittent-duty applications.

Large internal clearance and flow-through design result in large-solids passage capacity and prevent the pump from clogging. It features bolted construction for superior containment and the ability to pass compressible solids up to 51 mm (2″), depending on pump size.

Famous for its long life and easy serviceability, the durable Wilden® Turbo-Flo™ Series is the first air distribution system (ADS) that originated in the air-operated double-diaphragm (AODD) pump industry. Though enhancements have been made, these pumps work well in certain applications where quality of the compressed air is a concern. These pumps are easy to maintain, cost effective, and economical. Portable and available in a single-point exhaust option for submersible applications, the Turbo-Flo excels in utilitarian-type applications, including the transfer of water, slurry and more.

  • Simple air distribution system design, minimal moving parts
  • Clamped design for lightweight and quick maintenance
  • Ability to handle dirty air applications
  • Single-point exhaust

Wilden T810 Brahma Turbo-Flo Benefits and Features

  • Flap valve design for large-solids passage
  • Top inlet, bottom discharge for easy transfer of sediment and solid-laden fluids
  • Powered by Turbo-Flo™ ADS
AIR INLET:3/4″ FNPT
CONNECTION TYPE:NPT/BSPT (Threaded)
MAX PRESSURE:125 psi (8.6 bar)
LIQUID INLET:2″ (51mm)
LIQUID DISCHARGE:2″ (51mm)
MAX FLOW RATE:166 gpm (628 lpm)
MAX DIAMETER SOLIDS:2″ (51 mm)
MAX SUCTION LIFT CAPABILITY:DRY – 25.0′ (7.6m)  |  WET – 29.5′ (9.3m)
DISPLACEMENT PER STROKE (1 cycle = 2 strokes):0.46 gal (1.78 L)

Performance and Specifications

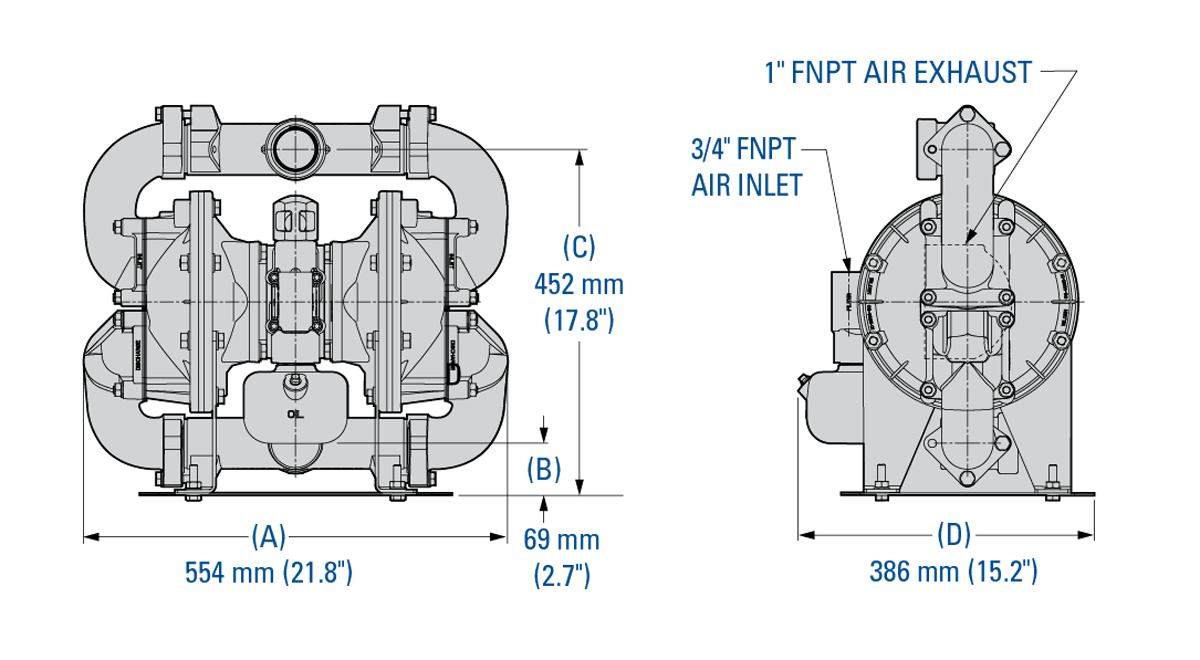

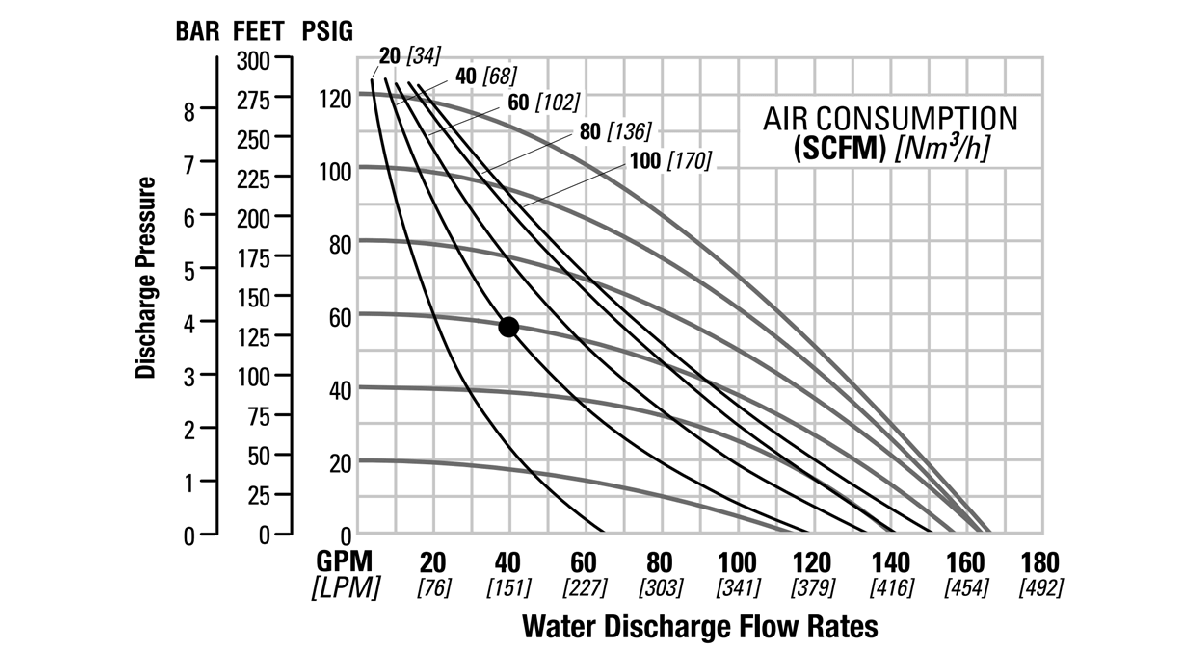

DimensionsFlow Curve
Wilden-T810-Brahma-DimensionsWilden-T810-Brahma-FlowCurve

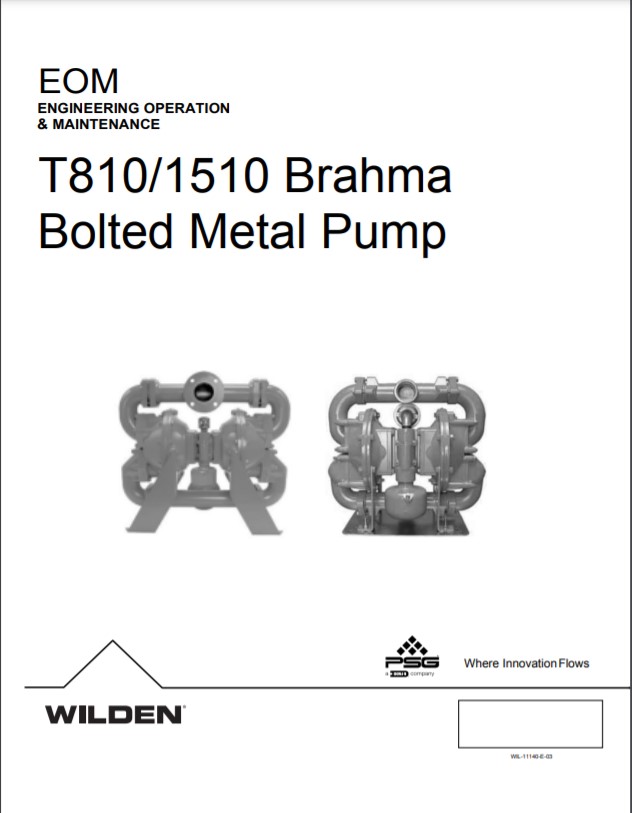

Note: Dimensions vary by material and connection. For additional information, please refer to the T810 EOM Manual.Note: Additional performance curves can be found in the T810 EOM Manual.

Wetted Housings

Non-Wetted Housings

MATERIALSHIP WEIGHTDESCRIPTIONMATERIAL
Aluminum89 lbs (40 kg)Center SectionAluminum
Ductile Iron133 lbs (60 kg)Air ValveBrass with Oil Bottle
Air ChamberAluminum

Elastomer Options

MaterialTemperature Limits
Buna-N10°F to 180°F (12°C to 82°C)
Neoprene0°F to 200°F (-18°C to 93°C)

Certifications

CE Mark (Conformité Européene – European Conformity)

Wilden CE Certification

Wilden T810 Brahma Advanced Metals
