4″ | 102 mm

Wilden T20 Original Metal AODD Pumps ensure reliability without sacrificing ease of maintenance. With simple installation and easy serviceability, it’s ready for rugged utilitarian applications that require a robust design.

The wetted path material is cast iron.

The Wilden T20 comes equipped with the Pro-Flo X™ Air Distribution System (ADS), which provides superior flow rates, variable control, the patented Efficiency Management System (EMS™), maximum Mean Time Between Repair (MTBR) and lube-free operation.



Wilden T20 Original Metal Benefits and Features



The Successful Solution

  • Decades of proven performance
  • Intrinsically safe
  • Clamped connections for faster maintenance
  • Self-priming
  • Variable speed
  • Dry-run without damage
  • Single-point exhaust option
  • Shear-sensitive
  • Widest range of materials in the industry



Dependable

  • Longest Mean Time Between Repair (MTBR)
  • Proven air distribution systems (ADS)
  • Simplicity of design
  • Superior anti-freezing
  • Increased On/Off reliability



Economical

  • Low cost
  • Simple installation
  • Ease of maintenance



Wilden T20 Original Metal Performance



WETTED HOUSINGS

(Water Chambers and Manifolds)

Material Ship Wt
Cast Iron 231 kg (500 lbs)



NON-WETTED HOUSINGS

Description Material
Center Block Aluminum
Air Valve Brass



FLOW RATE

  • TO 1041 LPM (232 GPM)

MAX PRESSURE

  • 8.6 BAR (125 PSI)

MAXIMUM SUCTION LIFT CAPABILITY

  • 3.7 m (12′) Dry, 9.1 m (30′) Wet

MAXIMUM DIAMETER SOLIDS

  • 35 mm ( 1-3/8”)

DISPLACEMENT PER STROKE

  • Rubber- 4.62 l (1.22 gal)
  • TPE- 4.62 l (1.22 gal)



Elastomer Options

Material Temperature Limits
Saniflex™ -28.9 to +104.4 °C (+20 to +220 °F)
Viton® -40 to +176.7 °C (-40 to +350 °F)



Certifications

CE Mark (Conformité Européene – European Conformity)

Wilden-CE-Certification

Wilden Pump & Engineering LLC has met the criteria for placing the CE mark on our product line. On December 3, 1999, Wilden fully self-certified its product line by meeting all the regulations of the Machinery and PED (Pressure Equipment) Directives. Every pump manufactured by Wilden will now receive the CE mark. Each pump box will also include a Safety Supplement manual in the eleven official languages of the European Community. This CE mark certification is indicative of Wilden’s pledge to providing our distributor network with all the sales tools necessary to excel in a global economy.

Resources

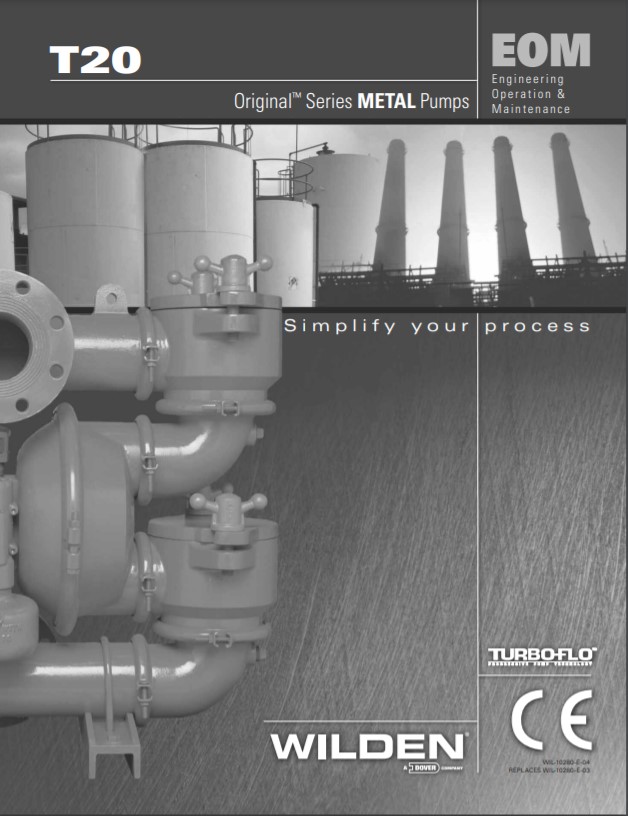

Wilden T20 Original Clamped Metal Pump EOM

Wilden T20 Original Clamped Metal Pump EOM

Download
