Wilden PS8 Saniflo Hygienic Series Clamped Metal Pumps

2″ | 51 mm Saniflo Hygienic Pro-Flo SHIFT Series Clamped Metal Pump

Wilden PS8 Saniflo Hygienic Series Clamped Metal Pumps are uniquely designed for high-cleanliness requirements and feature a free-draining flow path that enables clean-in-place (CIP) capability. The HS flow-through liquid-path design also eliminates any potential areas where product residue can be trapped and contaminate the product. They are perfect for low-acid, pasteurized and protein-based products all the way up to bio-pharmaceutical sterile processes. HS pumps also meet the highest standards and requirements in the industry, including 3A, ATEX, EC 1935/2004, FDA CFR 21.177 and USP Class VI certification is available only for Saniflo HS pumps with PTFE elastomer options.

  • Featuring energy efficient Pro-Flo® SHIFT ADS
  • Free-draining flow path for CIP capability
  • Easy assembly with self-centering ball cages
  • Permanent or rotatable stand for cleaning
  • Multiple valve options: ball, mushroom, or flap for different application requirements
  • Shear sensitive
  • Greater flow – more gallons pumped per SCFM
Certification-EC-Logo-100x100 Certification-USP-Logo-150x75 Certification-3a-Logo-100x100 Certification-fda-Logo-100x100 Wilden-CE-Certification Wilden-EX-Certification



AIR INLET: 3/4″ FNPT
CONNECTION TYPE:


Tri-Clamp®
DIN
SMS
MAX PRESSURE: 125 psi (8.6 bar)
VALVE OPTIONS:


Ball
Mushroom
Flap
LIQUID INLET: 2″ (51mm)
LIQUID DISCHARGE: 2″ (51mm)
MAX FLOW RATE:

Integral Piston – Full-Stroke:  148 gpm (560 lpm)
PTFE – Integral Piston:  116 gpm (439 lpm)
TPE – EZ-Install:  141 gpm (534 lpm)
PTFE – Full-Stroke:  141 gpm (534 lpm)
Rubber:  152 gpm (575 lpm)
MAX DIAMETER SOLIDS:


Ball:  1/2″ (13 mm)
Mushroom:  1/4″ (6.4mm)
Flap:  1-7/8″ (47.5mm)
MAX SUCTION LIFT CAPABILITY:

Integral Piston – Full-Stroke:   DRY – 10.6′ (3.3m) | WET – 29.5′ (9.0m)
PTFE – Integral Piston:  DRY – 7.4′ (2.3m) | WET – 29.5′ (9.06m)
TPE – EZ-Install:  DRY – 13.1′ (4.0m) | WET – 29.5′ (9.0m)
PTFE – Full-Stroke:  DRY – 12.7′ (3.9m) | WET – 29.5′ (9.0m)
Rubber:   DRY – 13.6′ (4.1m) | WET – 29.5′ (9.0m)
DISPLACEMENT PER STROKE (1 cycle = 2 strokes):

Integral Piston – Full-Stroke:  0.26 gal (1.0 L)
PTFE – Integral Piston:  0.14 gal (0.5 L)
TPE – EZ-Install:  0.26 gal (1.0 L)
PTFE – Full-Stroke:   0.26 gal (1.0 L)
Rubber:   0.26 gal (1.0 L)



Wetted Housings



Non-Wetted Housings

MATERIAL SHIP WEIGHT   DESCRIPTION MATERIAL
316L Stainless Steel 109 lbs (49 kg) Center Block 316 Stainless Steel, Nickel-Plated Aluminum
    Air Valve 316 Stainless Steel, Nickel-Plated Aluminum
      Air Chamber 316 Stainless Steel, Nickel-Plated Aluminum

Elastomer Options

Material Temperature Limits
EPDM -60°F to 280°F (-51°C to 138°C)
FKM -40°F to 350°F (-40°C to 177°C)
PTFE 40°F to 220°F (4°C to 104°C)

40°F to 300°F (4°C to 149°C) – 1/2″ (13mm) and 1″ (25mm) models only

Saniflex™ -20°F to 220°F (-29°C to 104°C)

Resources

Wilden PS8 Saniflo Hygienic Pump EOM

Wilden PS8 Saniflo Hygienic Pump EOM

Download

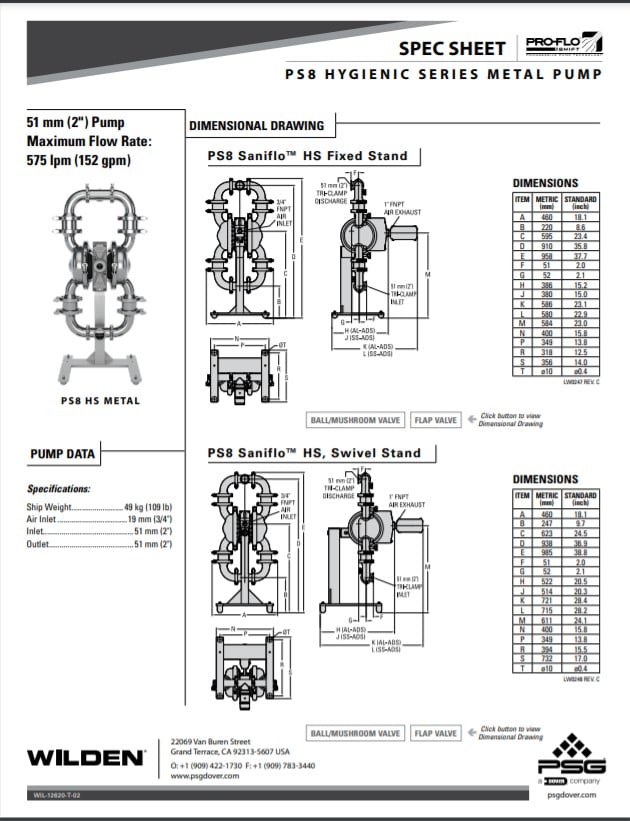

Wilden PS8 Saniflo Hygienic Pump Spec Sheet
