Wilden PS400 Pro-Flo Shift Bolted Plastic AODD Pumps

1-1/2″ | 38 mm Pro-Flo SHIFT Series Bolted Plastic Pump

Wilden PS400 Pro-Flo Bolted Plastic AODD Pumps combine maximum performance and efficiency with superior containment. Wilden’s bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.

  • DIN or ANSI flanged inlet/discharge liquid connections
  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow – more gallons pumped per SCFM
  • Reduced air consumption and kilowatt usage
  • Decades of proven performance
  • Bolted construction for superior containment
  • Large-solids passage
  • High suction lift
  • Ease of operation and maintenance
  • Increased on/off reliability
  • Longest Mean Time Between Repair (MTBR)
AIR INLET: 3/4″ FNPT
CONNECTION TYPE: DIN/ANSI (Flanged)
MAX PRESSURE: 125 psi (8.6 bar)
LIQUID INLET: 1-1/2″ (38mm)
LIQUID DISCHARGE: 1-1/2″ (38mm)
MAX FLOW RATE:


Rubber:  121 gpm (458 lpm)
EZ-Install TPE:  118 gpm (447 lpm)
Full-Stroke PTFE:  118 gpm (447 lpm)
MAX DIAMETER SOLIDS: 1/4″ (6.4 mm)
MAX SUCTION LIFT CAPABILITY:


Rubber:  DRY – 17.6′ (5.4m)  |  WET – 29.5′ (9.0m)
EZ-Install TPE:  DRY – 13.1′ (4.0m)  |  WET – 29.5′ (9.0m)
Full-Stroke PTFE:   DRY – 18.4′ (5.6m)  |  WET – 29.5′ (9.0m)
DISPLACEMENT PER STROKE (1 cycle = 2 strokes):


Rubber:  0.28 gal (1.1 L)
EZ-Install TPE:  0.28 gal (1.1 L)
Full-Stroke PTFE:  0.27 gal (1.0 L)



Wetted Housings



Non-Wetted Housings

MATERIAL SHIP WEIGHT   DESCRIPTION MATERIAL
Polypropylene 62 lbs (28 kg) Center Block Polypropylene
PVDF 70 lbs (32 kg) Air Valve Polypropylene
  Air Chamber Polypropylene



Elastomer Options

Material Temperature Limits
Buna-N 10°F to 180°F (12°C to 82°C)
EPDM -60°F to 280°F (-51°C to 138°C)
FKM -40°F to 350°F (-40°C to 177°C)
Geolast® -40°F to 180°F (-40°C to 82°C)
Neoprene 0°F to 200°F (-18°C to 93°C)
PTFE 40°F to 220°F (4°C to 104°C)

40°F to 300°F (4°C to 149°C) – 13 mm (1/2″) and 25 mm (1″) models only

Polyurethane 10°F to 150°F (-12°C to 66°C)
Saniflex™ -20°F to 220°F (-29°C to 104°C)
Wil-Flex™ -40°F to 225°F (-40°C to 107°C)



Certifications

CE Mark (Conformité Européene – European Conformity)

Wilden-CE-Certification

Wilden Pump & Engineering LLC has met the criteria for placing the CE mark on our product line. On December 3, 1999, Wilden fully self-certified its product line by meeting all the regulations of the Machinery and PED (Pressure Equipment) Directives. Every pump manufactured by Wilden will now receive the CE mark. Each pump box will also include a Safety Supplement manual in the eleven official languages of the European Community. This CE mark certification is indicative of Wilden’s pledge to providing our distributor network with all the sales tools necessary to excel in a global economy.

Resources

Wilden Pro-Flo Series - Brochure

Wilden Pro-Flo Series - Brochure

Download

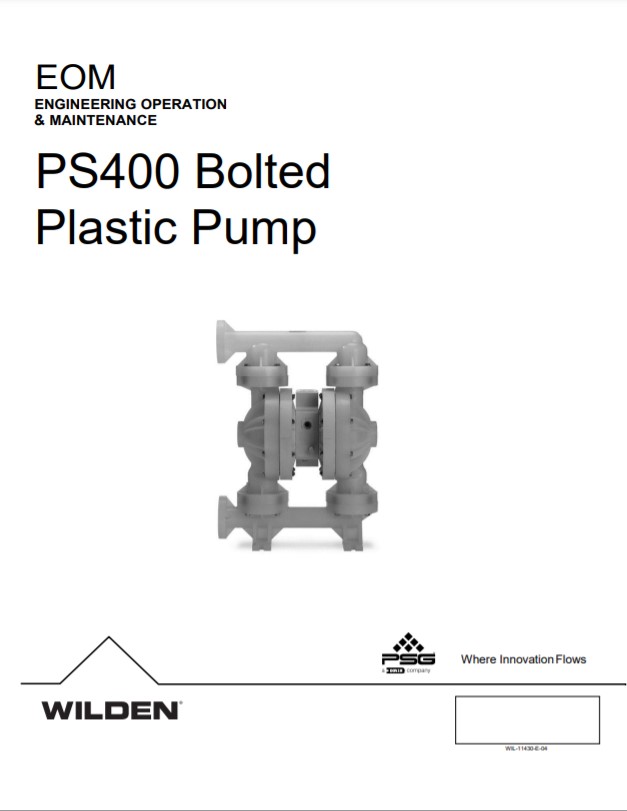

Wilden Pro-Flo Shift PS400 Bolted Plastic AODD Pump-EOM

Wilden Pro-Flo Shift PS400 Bolted Plastic AODD Pump-EOM

Download

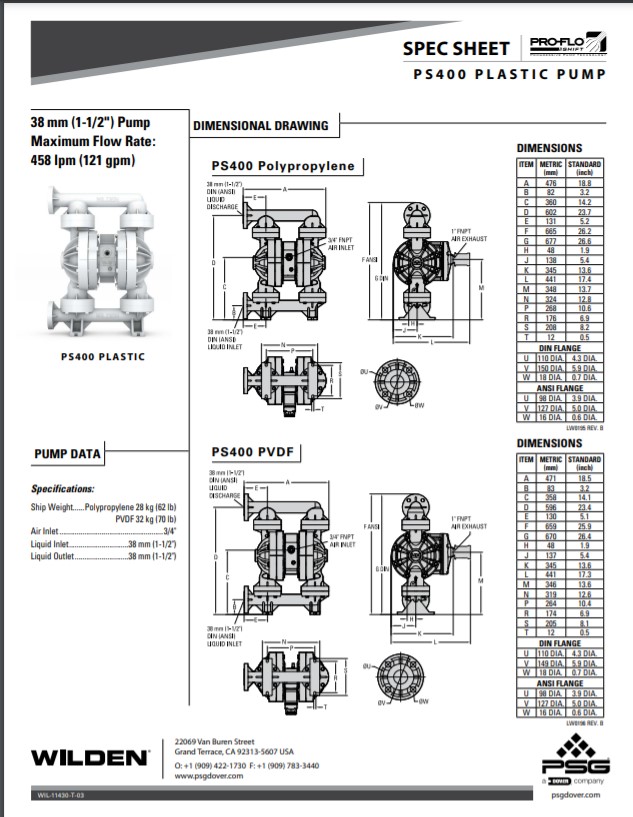

Wilden Pro-Flo Shift PS400 Bolted Plastic AODD Pump - Spec Sheet
