Summit 2196 ANSI Pumps

Summit 2196 ANSI Pumps

The Summit 2196 ANSI Pumps are open impeller, centrifugal model with end suction/ top discharge. The Summit 2196 ANSI Pumps are designed for handling mild industrial corrosives. Completely interchangeable with Goulds 3196 pumps.- 2196 ANSI Pump – Capacities to 6000 gpm – Heads to 730 feet – Temperatures to 700 degrees F Features: Back Pull Out Design; External Impeller Adjustment; Maximum Interchangeability; Standard Bronze Inpro® Labyrinth Seals; Heavy Duty Shaft & Bearings; Rigid Frame Foot; Fully Open Impeller; Extra Large Oil Sump.

Materials of Construction: Ductile Iron, 316 Stainless Steel, and Alloy 20

Applications Include

  • Pumping water
  • Pumping glycol
  • Pumping condensate
  • Pumping paper stock
  • Pumping white water
  • Booster pumps
  • Low-flow pumping
  • OEM pumps

Interchangeable With

  • Goulds ANSI Pump
  • Durco ANSI Pump
  • Peerless ANSI Pump
  • Worthington ANSI Pump
  • Sulzer ANSI Pump

For more information contact us at:1-877-624-5757


Join our Mailing List

Resources

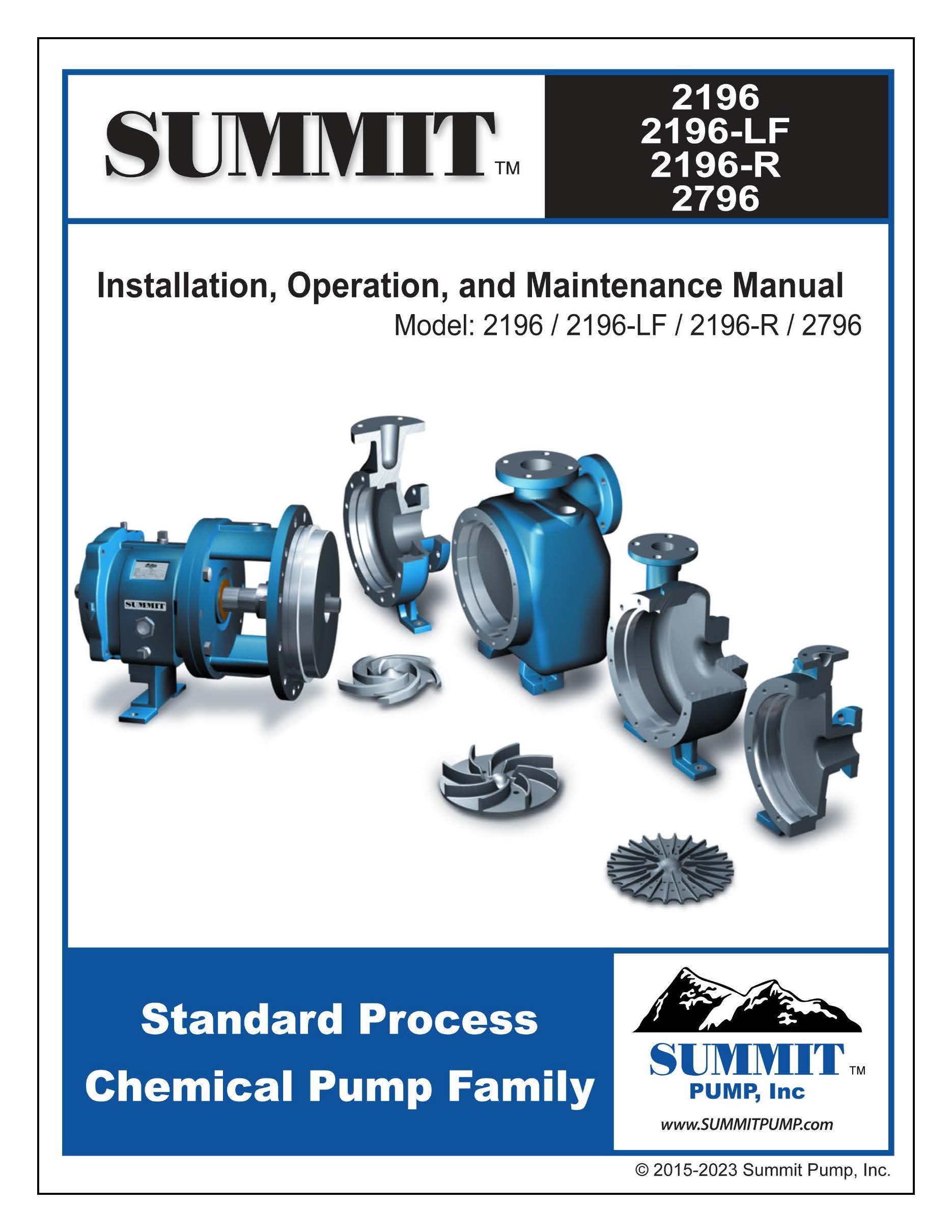

SUMMIT 2196 ANSI Pump

Download
Size: 600 KB
