Stan-Cor ANSI Centrifugal Pumps

The Stan-Cor ANSI Centrifugal Pump sets the industry standard for corrosive and abrasive process fluid applications

Designed by the process industry for the process industry

  • Cost-effective, rugged and durable design
  • Smooth, full-curve performance
  • Stancor pumps are available in sizes 1-1/2 x 1 x 6 to 3 x 4 x 12
  • These sizes will provide flows to 700gpm and heads to 350 feet
  • Temperatures to 250° F.
Stancor ANSI Centrifugal Pumps provide exclusive design advantages over all other centrifugal pumps. For applications requiring durability and performance on dirty, difficult fluids, Stancor pumps are by far the most cost-effective solution.

Stancor Centrifugal Pump solid component construction means:

  • No liners separating or collapsing
  • No permeation
  • Impellers that can be trimmed to your application

In addition to solid-liquid end components, Stancor ANSI Centrifugal Pumps also has the following features to enhance mechanical seal life:

  • Concentric casing which reduces hydraulic imbalances in the ANSI pump casing
  • Duplex angular contact bearings which eliminate any axial motion of the impeller, and shaft
Stancor ANSI Centrifugal Pumps conform to ANSI B73.1 specification for dimensions, shaft deflections and bearing life.



Stan-Cor Series Centrifugal Pumps are specifically designed to handle abrasive, corrosive, dirty and reclaim process fluids

Applications Include:

  • Textile – Bleaching of fabrics and silks
  • Food – Sugar refining, bleaching, disinfecting
  • Waster Water/Chemicals – Purifying water, deodorizing sewage, industrial effluents
  • Pulp & Paper – Bleaching pulp, fireproofing and wood preserving
  • Agriculture – Fertilizer, fungicide, and insecticide manufacturing
  • Electronics – Chip and metal cleaning, acid waste transfer
  • Steel – Steel and Stainless steel picking, acid recovery, acid transfer
  • Oil & Gas – Well acidizing, petroleum purification
  • Chemical – Catalyst transfer, acid transfer and neutralizing
  • Metal Treating – Anodizing, electroplating, plating

Performance Capabilities:

  • Flows to 700 GPM
  • Discharge Heads to 350 feet
  • Temperatures to 250° F
  • Minimum Flow 2 GPM
  • Solids to 9/16″

Resources

Stan-Cor-50hz

Stan-Cor-50hz

Download

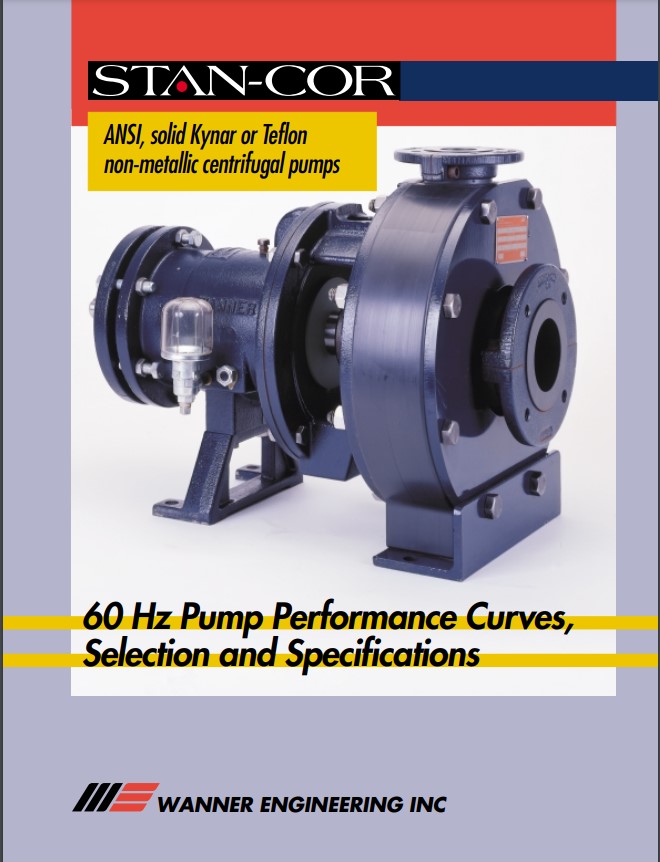

Stan Cor 60hz
