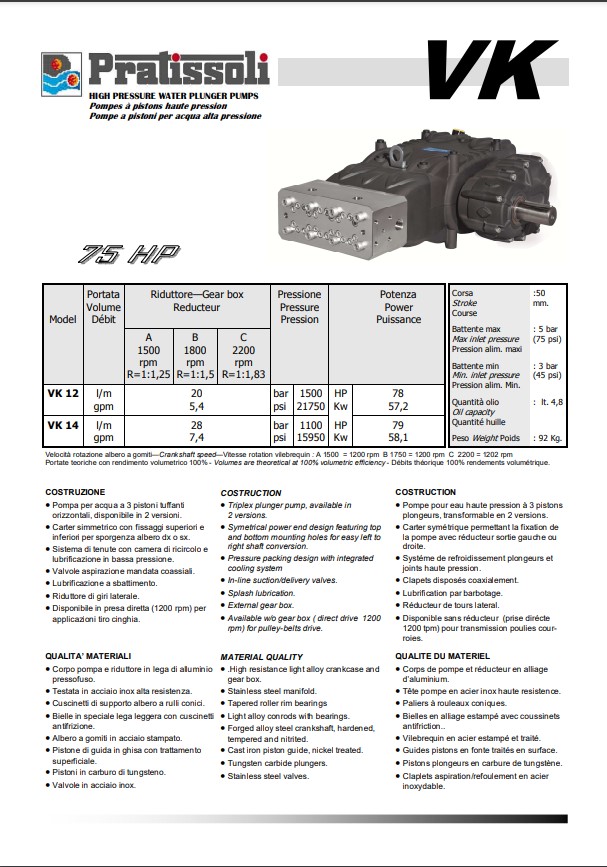

Pratissoli Series VK Triplex Plunger Pumps

Pratissoli Series VK Triplex Plunger Pumps


Construction

Triplex plunger pump, available in2 versions. Symetrical power end design featuring topand bottom mounting holes for easy left toright shaft conversion. Pressure packing design with integratedcooling system In-line suction/delivery valves. Splash lubrication. External gear box. Available w/o gear box ( direct drive 1200rpm) for pulley-belts drive.


Material quality

High resistance light alloy crankcase andgear box. Stainless steel manifold. Tapered roller rim bearings Light alloy conrods with bearings. Forged alloy steel crankshaft, hardened,tempered and nitrited. Cast iron piston guide, nickel treated. Tungsten carbide plungers. Stainless steel valves.<

Pump ModelVolumePressurePowerrpmWeight Kg.Dimensions mm.
L/minGPMbarpsikWHP
VK 122051500217505575180079645x501x237
VK 122051500217505575220079645x501x237
VK 122051500217505575150079645x501x237
VK 142871100159505575180079645x501x237
VK 142871100159505575220079645x501x237
VK 142871100159505575150079645x501x237
