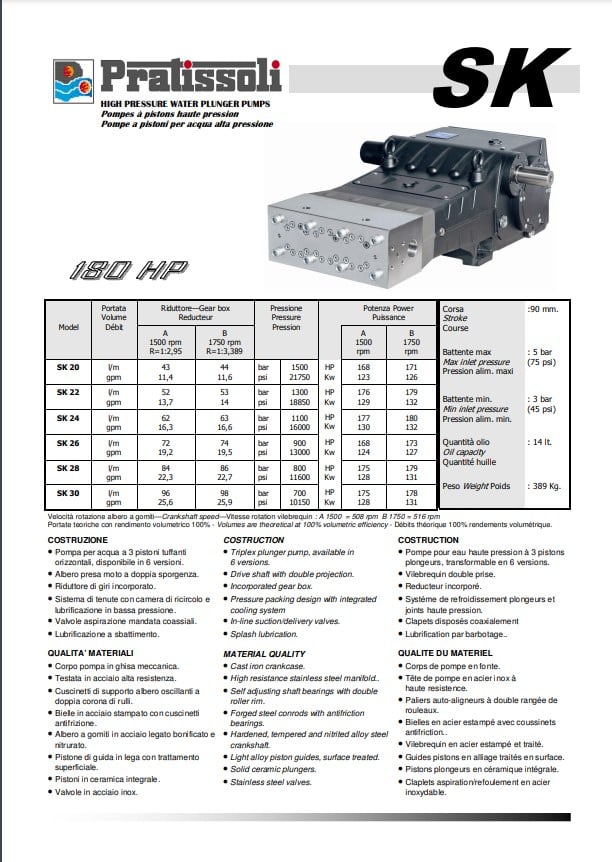

Pratissoli Series SK Triplex Plunger Pumps

Pratissoli Series SK Triplex Plunger Pumps



Construction

Triplex plunger pump, available in6 versions. Drive shaft with double projection. Incorporated gear box. Pressure packing design with integrated cooling system In-line suction/delivery valves. Splash lubrication.


Material quality

Cast iron crankcase. High resistance stainless steel manifold. . Self adjusting shaft bearings with double roller rim. Forged steel conrods with antifriction bearings. Hardened, tempered and nitrated alloy steel crankshaft. Light alloy piston guides, surface treated. Solid ceramic plungers. Stainless steel valves.



Pump Model Volume Pressure Power rpm Weight Kg. Dimensions mm.
L/min GPM bar psi kW HP
SK 20 43 11,4 1500 21750 123 168 1500 387,5 1064.5x672x348.5
SK 20 44 11,6 1500 21750 126 171 1800 387,5 1064.5x672x348.5
SK 22 52 13,7 1300 18850 129 176 1500 387,5 1064.5x672x348.5
SK 22 53 14 1300 18850 132 179 1800 387,5 1064.5x672x348.5
SK 24 62 16,4 1100 16000 130 177 1500 387,5 1064.5x672x348.5
SK 24 63 16,6 1100 16000 132 180 1800 387,5 1064.5x672x348.5
SK 26 73 19,3 900 13000 126 171 1500 387,5 1064.5x672x348.5
SK 26 74 19,6 900 13000 127 173 1800 387,5 1064.5x672x348.5
SK 28 84 22,3 800 11600 128 175 1500 387,5 1064.5x672x348.5
SK 28 86 22,7 800 11600 132 179 1800 387,5 1064.5x672x348.5
SK 30 96 25,4 700 10150 128 175 1500 387,5 1064.5x672x348.5
SK 30 98 25,9 700 10150 131 178 1800 387,5 1064.5x672x348.5
