Pitanco Precision Welding Gauge

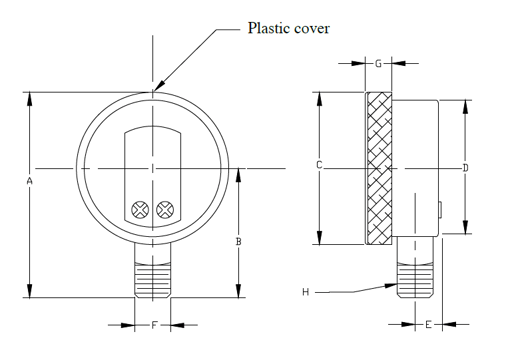

Welding-Gauge-WB-and-WSS-Diagram

Specifications for Pitanco Welding Gauge:

Case Polished brass for WB, 316 stainless steel for WSS
Dial White aluminum with psi graduations in black and bar in blue with pictogram “use no oil”
Ring Screw-on plexiglass
Connection ¼ in nptm bottom, brass for WB
¼ in nptm bottom, 316 stainless steel for WSS
Wetted parts Brass for WB, 316 stainless steel for WSS
Bourdon tube Phosphor bronze for WB, 316 stainless steel for WSS
Maximum process and ambient temperature -40 à 150°F / -40 à 65°C
Operating pressure Maximum of 75 % of full scale value
Overpressure limit 25 % over full scale value
Accuracy ASME B40.100(B40.1), Grade B ± 2 %



Dimensions Per Diagram:
Model A B C D E F G H
200WB/200WSS316 3.05 in (77.47 mm) 1.90 in (48.26 mm) 2.3 in (58.29 mm) 2.06 in (52.32 mm) 0.35 in (8.89 mm) 0.54 in (13.74 mm) 0.4 in (10.16 mm) ¼ npt
250WB/250WSS316 3.73 in (94.74 mm) 2.31 in (58.67 mm) 2.83 in (71.82 mm) 2.62 in (66.55 mm) 0.4 in (10.16 mm) 0.54 in (13.74 mm) 0.4 in (10.16 mm) ¼ npt



To order, use the code in the corresponding column

Size 2 in (50 mm) 2 in (50 mm) 2 1/2 in (63 mm) 2 1/2 in (63 mm)
Connection 1/4 in nptm bottom 1/4 in nptm bottom 1/4 in nptm bottom 1/4 in nptm bottom
Material brass 316 stainless steel brass 316 stainless steel

Range


0 to 30 psi/bar 200WB-10B 200WSS316-10B 250WB-10B 250WSS316-10B
0 to 100 psi/bar 200WB-12B 200WSS316-12B 250WB-12B 250WSS316-12B
0 to 200 psi/bar 200WB-14B 200WSS316-14B 250WB-14B 250WSS316-14B
0 to 400 psi/bar 200WB-23B 200WSS316-23B 250WB-23B 250WSS316-23B
0 to 1,000 psi/bar 200WB-17B 200WSS316-17B 250WB-17B 250WSS316-17B
0 to 4,000 psi/bar 200WB-28B 200WSS316-28B 250WB-28B 250WSS316-28B
0 to 5,000 psi/bar 200WB-20B 200WSS316-20B 250WB-20B 250WB-20B
