Pitanco Precision Low Pressure Gauge

Low Pressure Gauge from Pitanco Precision ensures accurate reading .

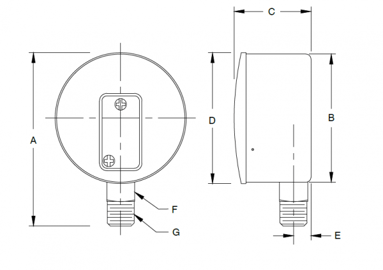

Low-Pressure-Gauge-250LPB15WO-Diagram-600x423
Low Pressure Gauge 250 LPB15WO Diagram

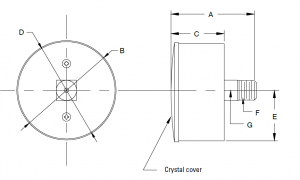

Low-Pressure-Gauge-251LPB-Diagram-300x180
Low Pressure Gauge 251LPB Diagram




Specifications for Low Pressure Gauge:

Case Steel, painted black for LPB / 304 stainless steel for LPSS
Dial White aluminum, H2O or psi graduations in black, oz or kPa in blue
Cover and lens Snap-in polycarbonate for 2 ½ in (63 mm), 304 stainless steel bayonet and polycarbonate lens
for 4 in (100 mm)
Pointer Aluminum, painted black
Connection ¼ in nptm bottom or center back, brass for LPB / 316 stainless steel for LPSS
Wetted parts Brass for LPB / 316 stainless steel for LPSS
Capsule diaphragm Phosphor bronze for LPB / stainless steel for LPSS
Ambient temperature -40 to 150°F / -40 to 65°C
Operating pressure Maximum 75 % of full scale value
Over-pressure limit 25% over full scale value.
Accuracy ASME B40.100(B40.1), Grade B ± 2 %

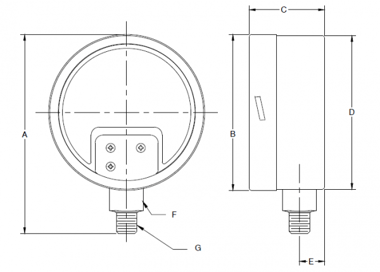

Low-Pressure-Gauge-400LPSS-Diagram-600x430
Low Pressure Gauge 400LPSS Diagram

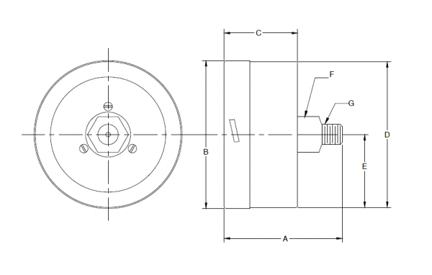

Low-Pressure-Gauge-401LPSS-Diagram-600x382
Low Pressure Gauge 401LPSS Diagram


Dimensions As Per Diagram:

Model Ø Connection A B C D E F G
250LPB 2.5 in  (63 mm) bottom 3.45 in (87.6 mm) 2.63 in (66.1 mm) 1.55 in (39.4 mm) 2.57 in    (65.2 mm) 0.33 in (8.4 mm) 9/16 flat (14 mm) ¼ in npt
250LPSS 2.5 in (63 mm) bottom 3.57 in (90.7 mm) 2.63 in (66.1 mm) 1.55 in (39.4 mm) 2.57 in (65.2 mm) 0.33 in (8.4 mm) 9/16 flat (14 mm) ¼ in npt
251LPB 2.5 in (63 mm) center back 2.44 in (62 mm) 2.63 in (66.1 mm) 1.55 in (39.4 mm) 2.57 in (65.2 mm) 1.29 in (32.8 mm) 9/16 flat (14 mm) ¼ in npt
251LPSS 2.5 in (63 mm) center back 2.36 in (59.9 mm) 2.63 in (66.1 mm) 1.55 in (39.4 mm) 2.57 in (65.2 mm) 1.26 in (32 mm) 9/16 flat (14 mm) ¼ in npt
400LPSS 4 in (100 mm) bottom 5.05 in (128 mm) 3.96 in (99 mm) 1.94 in (49.2 mm) 3.98 in (101 mm) 1.63 in (41.4 mm) 7/8 flat (22.2 mm) ¼ in npt
401LPSS 4 in (100 mm) center back 3.19 in (81 mm) 3.96 in (99 mm) 1.94 in (49.2 mm) 3.98 in (101 mm) 1.63 in (41.4 mm) 15/16 in Hex (24.2 mm) ¼ in npt¼ in npt



To order view the table by clicking the link below and use the code in the corresponding column:

Low Pressure Gauge Order Code Form
