Pitanco Precision Glycerin Filled Industrial Pressure Gauge – Stainless Steel Case, Stainless Steel Wetted Parts

Pitanco Precision Glycerin Filled Industrial Pressure Gauge – Stainless Steel Case, Stainless Steel Wetted Parts

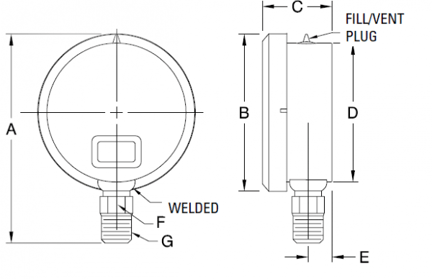

Glycerin-Filled-Industrial-Pressure-Gauges-Stainlesss-Steel-Wetted-250LFSS21W-Diagram-1-600x388
250LFSS21W

Specifications


Case 304 stainless steel
Dial White aluminum with psi graduations in black, kPa in blue
Ring 304 stainless steel, bayonet style except 1 ½ in (40 mm) hermetically sealed
Lens Polycarbonate
Pointer LFSS: Black anodized aluminum for 1 ½ in (40 mm), 2 in (50 mm), 2 ½ in (63 mm) and 4 in (100 mm)
LFSSW: adjustable pointer for 4 in (100 mm) and 6 in (150 mm)
Connection 316 stainless steel
Wetted parts 316 stainless steel
Bourdon tube 316 stainless steel
Maximum process and ambient temperatures -40 to 150°F / -40 to 65°C dry
32 to 160°F / 0 to 70°C glycerin filled
Operating pressure Maximum 75 % of full scale value
Over-pressure limit 25 % over full scale value
Accuracy ASME B40.100(B40.1), Grade B ± 2 %, 1 ½ in (40 mm), 2 in (50 mm), 2 ½ in (63 mm) and 4 in (100 mm) LFSS
Grade A ± 1 % for 4 in (100 mm) and 6 in (150 mm) LFSSW

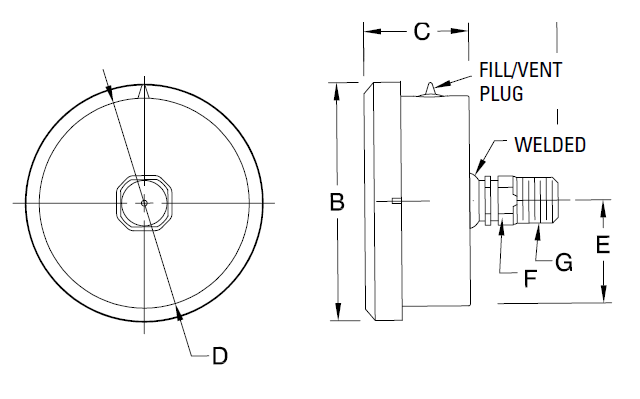

251LFSS12W-Diagram
251LFSS12W

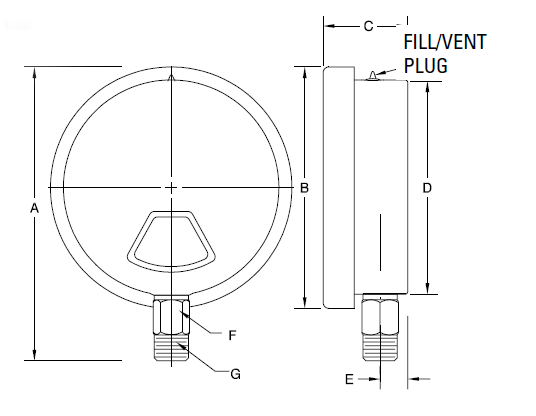

400-LFSS12-Diagram
400LFSS12

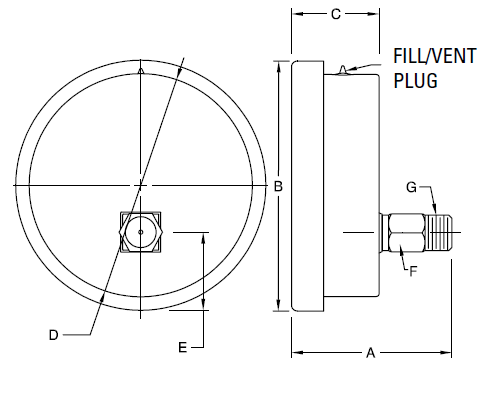

401LFSS19-Drawing
401LFSS19





Dimensions As Per Diagram

Ø Connection A B C D E F G
1.5 in (40 mm) bottom welded 2.49 in (63 mm) 1.83 in (46 mm) 0.98 in (25 mm) 1.6 in (41 mm) 0.32 in (8 mm) 7/16 flat (11 mm) ⅛ in nptm
hermetic center back welded 1.75 in (44 mm) 1.83 in (46 mm) 0.98 in (25 mm) 1.6 in (41 mm) 0.8 in (20 mm) 7/16 flat (11 mm) ⅛ in nptm
2 in (50 mm) bottom welded 3.17 in (80.4 mm) 2.3 in (58 mm) 1.1 in (28.2 mm) 2 in (51.6 mm) 0.41 in (10.4 mm) 9/16 hex. (14 mm) ¼ in nptm
bayonet center back welded 2.11 in (53.6 mm) 2.3 in (58 mm) 1.1 in (28.2 mm) 2 in (51.6 mm) 1 in (25.8 mm) 9/16 hex. (14 mm) ¼ in nptm
2.5 in (63 mm) bottom welded 3.6 in (92.11 mm) 2.7 in (69 mm) 1.2 in (30.5 mm) 2.4 in (61 mm) 0.41 in (10.4 mm) 9/16 hex. (14 mm) ¼ in nptm
bayonet center back welded 2.2 in (56.1 mm) 2.7 in (69 mm) 1.2 in (30.5 mm) 2.4 in (61 mm) 1.2 in (30.5 mm) 9/16 hex. (14 mm) ¼ in nptm
4 in (100 mm) bottom 5.3 in (135.1 mm) 4.4 in (111 mm) 1.5 in (38.9 mm) 3.9 in (99 mm) 0.5 in (12.7 mm) 11/16 hex. (17 mm) ¼ in nptm
bayonet lower back 2.8 in (71.2 mm) 4.4 in (111 mm) 1.5 in (38.9 mm) 3.9 in (99 mm) 1.4 in (34.7 mm) 11/16 hex. (17 mm) ¼ in nptm
4 in (100 mm) bottom welded 5.6 in (142.2 mm) 4.4 in (111 mm) 1.9 in (48.3 mm) 3.9 in (99 mm) 0.65 in (16.5 mm) 7/8 flat (22 mm) ¼ in nptm
Premium Quality lower back welded 3 in (76.2 mm) 4.4 in (111 mm) 1.9 in (48.3 mm) 3.9 in (99 mm) 0.85 in (22 mm) 7/8 flat (22 mm) ¼ in nptm
4 in (100 mm) bottom welded 5.75 in (146 mm) 4.4 in (111 mm) 1.9 in (48.3 mm) 3.9 in (99 mm) 0.62 in (16 mm) 7/8 flat (22 mm) ½ in nptm
Premium Quality lower back welded 3.3 in (84 mm) 4.4 in (111 mm) 1.9 in (48.3 mm) 3.9 in (99 mm) 0.83 in (21 mm) 7/8 flat (22 mm) ½ in nptm
6 in (150 mm) bottom welded 7.62 in (194 mm) 6.3 in (160 mm) 1.9 in (48.3 mm) 5.86 in (149 mm) 0.57 in (14 mm) 7/8 flat (22 mm) ½ in nptm
Premium Quality lower back welded 3.52 in (89 mm) 6.3 in (160 mm) 1.9 in (48.3 mm) 5.86 in (149 mm) 1.77 in (45 mm) 7/8 flat (22 mm) ½ in nptm

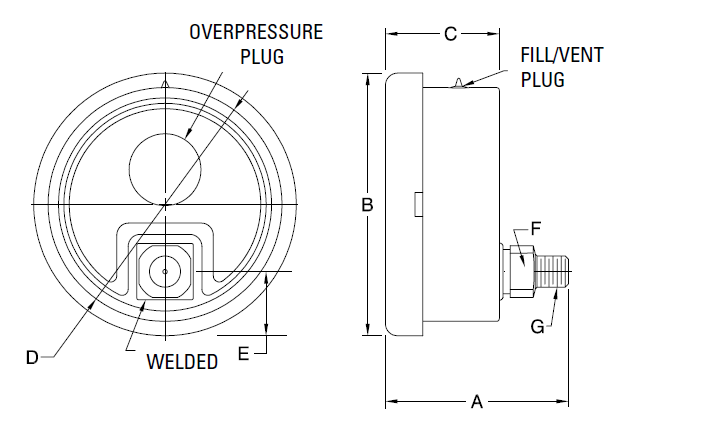

Glycerin-Filled-Industrial-Pressure-Gauge-Mdels-401-and-601-LFSSW-Diagram



401 and 601LFSSW

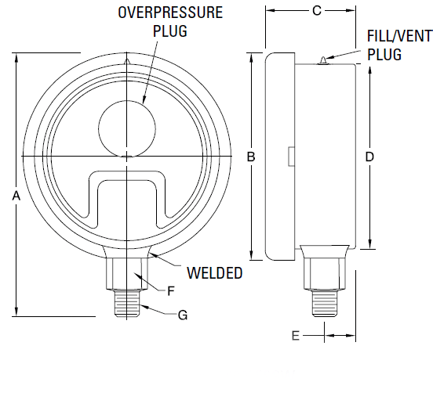

400-and-600-LFSSW-Diagram-1
400 and 600LFSSW Diagram

To Order Download the Form below and Use the Code in the Corresponding Column

Order Code Table for Pressure Gauge LFSS and LFSSW Glycerin Filled
