Nex Flow Adjustable Spot Cooler

The Frigid-X Adjustable Spot Cooler is a low cost and maintenance free system which utilizes a vortex tube to produce cold air at one end. The Frigid-X Adjustable Spot Cooler temperature can be adjusted using a knob at the hot end to set the temperature precisely to your requirements.

Temperatures range from approximately minus 30ºF to room temperature and can be easily set with a thermometer. The Frigid-X Adjustable Spot Cooler System comes with three brass generators for flow rate adjustment – 15 SCFM (425 SLPM), 25 SCFM (708 SLPM) and 30 SCFM (850 SLPM) providing refrigeration up to 2100 BTU/hr (615 Watts).

Cold air is directed using the flexible tubing. A magnetic base is standard for portability and easy mounting of the adjustable spot cooler.

Units are available with either a single point hose kit for small surface area or a dual point hose kit when heat is generated over a larger surface area. Adjustable spot cooler produces a wide range of airflow and temperature by adjusting the knob at the hot end and changing the various generators supplied.

The generators control the air consumption and are easily interchangeable. Adjustable spot cooler has a 25 SCFM (708 SLPM) generator installed that will produce up to 1,800 Btu/hr. of cooling. If less is required, the 15 SCFM (425 SLPM) generator can deliver 1,100 BTU/Hr. If more cooling is needed Nex Flow™ can supply you with the 30 SCFM (850 SLPM) generator for up to 2,100 BTU/Hr. of cooling.

Join our Mailing List

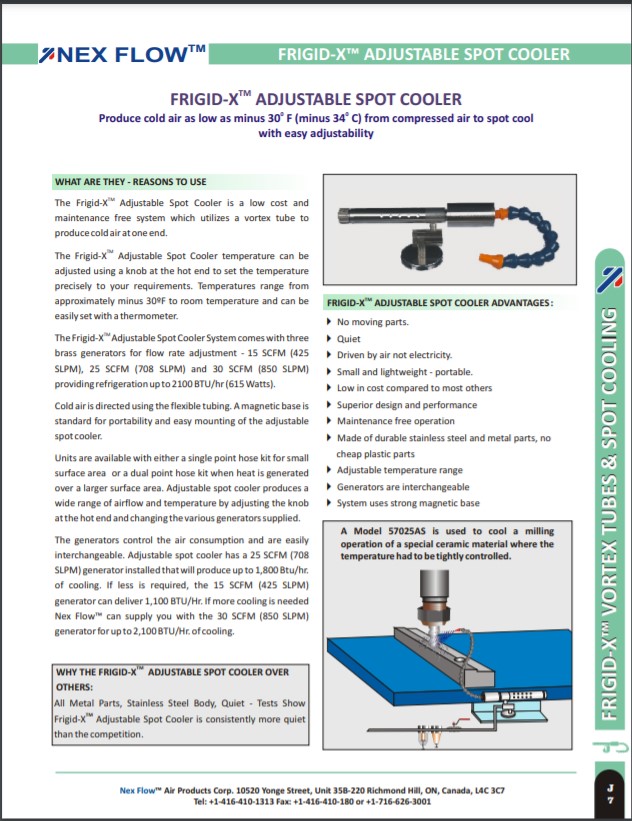

Nex Flow Adjustable Spot Cooler

Size: 895 KB

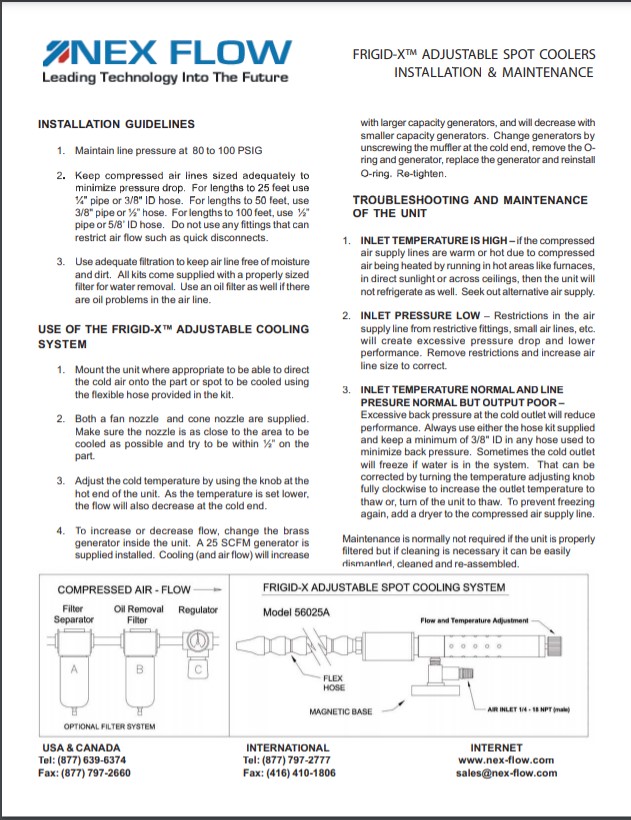

Nex Flow Adjustable Spot Cooler Maintenance

Size: 180 KB
