MAXX Industrial Washdown Spray Guns

Heavy-Duty, Medium or Light-Duty Spray Guns and Spray Gun Accessories designed for cleaning and sanitizing applications in industrial and food processing environments.

We offer an affordable variety of handheld industrial spray guns and spray gun accessories including quick-disconnects, spray lances and swivels, for all your cleaning, sanitizing and wash-down applications.

AA238JB-Spray-Gun-e1600891550483



Pressure:  2300 psi
Flow Rate:  8 gpm
Temperature:  210°F
AA238JB
Rated for up to 2300 PSI and 8 GPM. Weighing in at just over 9 ounces , this is our lightest spray gun. It is ergonomically designed for minimum operator fatigue. A 3/8” NPT(F) inlet port is positioned in front of the trigger guard. The outlet port is available as 1/4” NPT(F) on the AA238JB-3/8×1/4 or with the 11/16-16 UniJB retainer cap male thread on the AA238JB-3/8. Any of the UniJB spray tips, up to 8 GPM at the operating pressure, can be used with this version. A trigger-closed lock is standard.
AA408JB-Spray-Gun-e1600891588534



Pressure:  4050 psi
Flow Rate:  8 gpm
Temperature:  320°F
AA408JB
Rated for up to 4050 PSI and 8 GPM. If the preference is to standardize on one spray gun throughout the plant, at this pressure and volume rating, this gun will meet most in-plant high pressure washing needs. The inlet port is 3/8” NPT (F) and the outlet port is available as 1/4” NPT(F) on the AA408JB-3/8×1/4. Any of the UniJB spray tips, up to 8 GPM at the operating pressure, can be used with this version. A trigger-closed lock is standard.
AA4511JB-Spray-Gun-e1600891629123



Pressure:  4500 psi
Flow Rate:  11 gpm
Temperature:  320°F
AA4511JB
Rated for up to 4500 PSI and 11 GPM. Weighing less than 1-1/2 lbs, this is an excellent spray gun for heavy duty operations where the gun will be used for long periods of time. The 3/8”NPT(F) bottom inlet adds to the comfort by helping to balance the reactionary force or “kick-back” of the spray gun. The outlet port is available as 1/4” NPT(F) on the AA4511JB-3/8×1/4 or with the 11/16-16 UniJB retainer cap male thread on the AA4511JB-3/8. Any of the UniJB spray tips, up to 11 GPM at the operating pressure, can be used with this version. A trigger-closed lock is standard.
G250VASW-Spray-Gun-e1600891693239



Pressure:  4500 psi
Flow Rate:  10.5 gpm
Temperature:  320°F
G250VASW
Available with (-S) an Integral Swivel. The PA G250VA Spray Gun features a brass forged body and weighs in at 27.5 oz. The mechanism in stainless steel grants elevated performance and long life span. The ergonomic design reduces the strain during use protecting the user’s hand. The lever is fitted with a safety latch to prevent involuntary actions.
CU316JB-1-255x300



Pressure:  350 psi
Flow Rate:  16 gpm
Temperature:  195°F

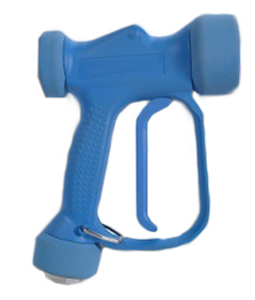

CU316JB
Low pressure wash-down spray guns feature an infinitely adjustable spray pattern from fine hollow cone to high impact solid stream. The pattern is controlled by the amount the trigger is opened and varies from a cone of fine mist to a high impact solid stream, similar to a garden hose nozzle. The CU316JB has a maximum flow rate of 16 and is available with (-S) or without an integral Swivel. The CU327JB has a maximum flow rate of 27 GPM. Materials include a plated brass body with a tough plastic outer cover. A trigger-open lock is standard to assist the operator with long stints.
CU316JB-1-255x300-1



Pressure:  350 psi
Flow Rate:  27 gpm
Temperature:  195°F
CU327JB
Low pressure wash-down spray guns feature an infinitely adjustable spray pattern from fine hollow cone to high impact solid stream. The pattern is controlled by the amount the trigger is opened and varies from a cone of fine mist to a high impact solid stream, similar to a garden hose nozzle. The CU316JB has a maximum flow rate of 16 and is available with (-S) or without an integral Swivel. The CU327JB has a maximum flow rate of 27 GPM. Materials include a plated brass body with a tough plastic outer cover. A trigger-open lock is standard to assist the operator with long stints.



PART
NUMBER
WETTED
METALLIC
PARTS
MAXIMUM
OPERATING
PRESSURE PSI
MAXIMUM
FLOW RATE
US GPM
MAXIMUM
TEMPERATURE ºF
INLET
CONNECTION
OUTLET
CONNECTION
SWIVEL
AA238JB-3/8×1/4 BRASS 2300 8 210 3/8” NPT (F) 1/4” NPT (F) Optional
AA238JB-3/8 BRASS 2300 8 210 3/8” NPT (F) 11/16” – 16 (M) Optional
AA408JB-3/8×1/4 BRASS 4050 8 320 3/8” NPT (F) 1/4” NPT (F) Optional
6250VASW BRASS 4500 11 320 3/8” NPT (F) 1/4” NPT (F) Integral
AA4511JB-3/8×1/4 BRASS 4500 11 320 3/8” NPT (F) 1/4” NPT (F) Optional
AA4511JB-3/8-S BRASS 4500 11 320 3/8” NPT (F) 11/16” – 16 (M) Integral
CU316JB-1/2-S PLATED BRASS 350 16 195 1/2” BSP (F) Integral
CU316JB-1/2 PLATED BRASS 350 16 195 1/2” BSP (F) Optional
CU327JB-1/2 PLATED BRASS 350 27 195 1/2” BSP (F) Optional



Spray Gun Accessories – Quick Disconnects, Spray Lances and Swivels



QCJBA-3-8F-300x300



QCJBA-3/8F
Quick Disconnect Part A Female for the inlet of the AA Series guns
QCJBB-3-8M-100x100



QCJBB-3/8M
Quick Disconnect – Part B Male for the inlet of the AA Series guns
3010JB27-300x43



3010JB27
27” Single Lance – Zinc Plated
3010JB35-300x43



3010JB35
35” Single Lance – Zinc Plated
3015JB-1-2Brass-100x100



3015JB-1/2
Brass Swivel – 1/2” BSP (F x M)
3015JB-3-8-100x100



3015JB-3/8
Brass or Stainless Steel Swivel – 1/2” BSP (F x M)



PART
NUMBER
DESCRIPTION MATERIAL MAXIMUM
FLOW RATE
US GPM
MAXIMUM
OPERATING
PRESSURE PSI
MAXIMUM
TEMPERATURE °F
INLET
CONNECTION
OUTLET
CONNECTION
QCJBA-3/8F Quick-Connect A Brass 10.5 3000 284 3/8” NPT (F)
QCJBB-3/8M Quick-Connect B Brass 10.5 3000 284   3/8” NPT (M)
3010JB27 27” Lance Steel, Zinc Plated 10.5 3000 284 1/4” BSP (M) 1/4” BSP (F)
3010JB35 35” Lance Steel, Zinc Plated 10.5 3000 284 1/4” BSP (M) 1/4” BSP (F)
3015JB-1/2SW65 Swivel Brass 26.5 350 195 1/2” BSP (F) 1/2” BSP (M)
3015JB-3/8SW7044 Swivel Brass 3000 200 3/8” NPT (F) 3/8” NPT (M)
3015SJB-3/8SW7080 Swivel Stainless Steel 5000 200 3/8” NPT (F) 3/8” NPT (M)
