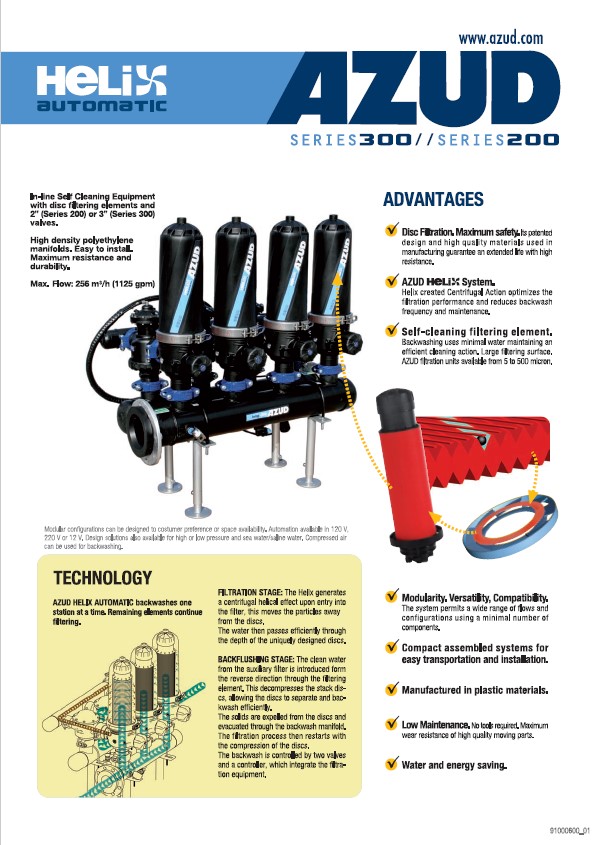

- Automatic in-line Self Cleaning equipment with disc filtering element with 2″ valves (Series 200) or 3″ valves (Series 300).
- High Density Polyethylene manifolds. Easy to install. Maximum resistance and durability.
- Max flow 256 m3/h (1125 gpm).
- Modular configuration allows design according to customer preference or space availability.
- Automation available in 110 V, 220 V or 12 V. There are special options available for Low Pressure, High Pressure and Sea/Saline water conditions.
- Also possible to backwash with compressed air, minimizing the water loss during backwash.
- Its patented design and high quality of materials used in manufacturing guarantee an extended life with high resistance.
Optimizes the performance and minimizes the frequency of maintenance.
SELF-CLEANING FILTERING ELEMENT
Maximum saving of water with efficiency in backwashing. Large filtering area. Discs from 5 to 400 micron.
Versatility and compatibility. The system permits a wide range of possibilities with a minimal number of components
FACILITATES EASY TRANSPORTATION AND INSTALLATION
Equipment is pre-assembled.
MANUFACTURED IN PLASTIC MATERIALS
No tools required for maintenance. Maximum resistance with movable parts not susceptible to wear due to continuous operation.
WATER AND ENERGY SAVING
