Goulds Xylem 3656 3756 S End Suction Cast Iron Pumps – Residential, Commercial Cast Iron, Bronze Fitted Centrifugal Pumps

Goulds Xylem 3656 3756 S End Suction Cast Iron Pumps Features and Benefits:



The Goulds Xylem 3656 3756 S pumps from Goulds Water Technology have been designed with technical benefits to meet the needs of users in a variety of water supply, recirculation, and cooling applications.

  • The model 3656 offers close coupled design for space saving and simplified maintenance.
  • The model 3756 offers a bearing frame mounted design for flexibility of installation and drive arrangements.
  • Back pull-out to reduce maintenance down time.
  • Standard Type 21 mechanical seal for both reliability and availability. Carbon/ceramic/ BUNA standard, with other faces and elastomers available.
  • 3656/3756 available in all iron, bronze fitted or all bronze construction for application versatility.
  • Replaceable wearing components include stainless steel shaft sleeve and casing and hub wear rings to maintain peak efficiency.
  • Packed box sealing is also available as an option.
  • Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses affecting performance and pump life.
  • Suction and discharge pipe connections are NPT threaded, except 3 x 4 7 which has 125 lb. ANSI flat faced flanges.
  • Rigid cast iron motor adapter provides support and registered fits maintain positive unit alignment.
  • Standard NEMA motor frame, JM or JP shaft extension, C-face mounting, single phase or three phase, 3500 or 1750 RPM. Open drip proof and totally enclosed fan cooled.
  • Optional explosion proof or high efficiency motors available.
  • Optional rigid carbon steel bedplate, sheet metal coupling guard and T. B. Woods spacer coupling for 3756 models



Applications for the Goulds Xylem 3656 3756 S End Suction Cast Iron Pumps :

  • Booster service
  • Spraying systems
  • Irrigation
  • Water circulation
  • Liquid transfer
  • General purpose pumping

Resources

Gould Commercial Pumps

Gould Commercial Pumps

Download

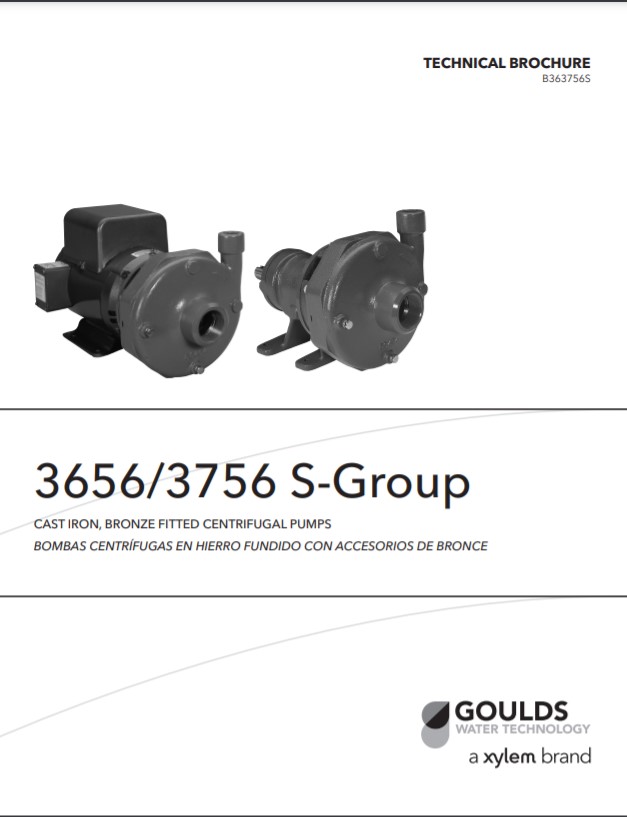

Goulds 3756 S-Group End Suction Cast Iron Pumps

Goulds 3756 S-Group End Suction Cast Iron Pumps

Download
