EATON Model 72 Simplex Basket Strainers

EATON Model 72 Simplex Basket Strainers for applications in which the line can be temporarily shut down for strainer basket cleaning or change-out.  Simplex Basket Strainers are high quality, heavy duty units that stand up to the most demanding of applications.

EATON Model 72 Simplex Basket Strainers – Iron, Bronze, Carbon Steel or Stainless Steel -Threaded or Flanged, 3/8″ to 8″

Eaton Model 72 Simplex Basket Strainers has been the industry standard simplex basket strainer for more than 75 years. A reason for its popularity is the unusually large basket capacity. The free straining area with a perforated basket is a minimum of six times the cross sectional pipe area. No tools are needed to open the cover. The quick opening, swinging yoke can be disassembled and the basket removed in seconds. On sizes 4″ and larger, a special cover clamp is provided to distribute the seating pressure and to ensure positive seating of the cover.

Another feature is a threaded drain on every size strainer (fitted with a yoke quick-closer). Sizes 2″ and larger are equipped with legs that bolt to the floor for rock solid installation. Wall thicknesses are exceptionally heavy. The basket seats are precision machined to give a tight seal and prevent any material from bypassing the basket. The Eaton Model 72 simplex basket strainer is a top quality, heavy-duty unit designed to stand up to the most demanding of applications.

EATON Model 72 Simplex Basket Strainers Features

  • Quick open cover without tools
  • Large capacity baskets
  • Threaded drain
  • Machined basket seat
  • Perforated or mesh stainless steel baskets standard
  • American Bureau of Shipping (ABS) Type Approved for ship designers, builders and owners

EATON Model 72 Simplex Basket Strainers Options

  • Basket perforations from 1/32″ to 1/2″
  • Basket mesh from 20 to 400
  • Monel baskets
  • Viton®, TFE or EPDM seals
  • Vent valves
  • Drain valves
  • 1/4″ NPT taps
  • Magnetic basket inserts
  • Pressure differential gauge and switch connections
SizeMaterialEnd ConnectionSealsPressure Rating*
3/8″ to 3″Iron & BronzeThreadedBuna-N200 psi (13.8 bar)
1″ to 3″Carbon SteelThreadedBuna-N200 psi (13.8 bar)
1″ to 3″Stainless SteelThreadedViton200 psi (13.8 bar)
1″ to 8″IronFlanged 125#Buna-N200 psi (13.8 bar)
1″ to 8″BronzeFlanged 150#Buna-N200 psi (13.8 bar)
1″ to 8″Carbon SteelFlanged 150#Buna-N200 psi (13.8 bar)
1″ to 8″Stainless SteelFlanged 150#Viton200 psi (13.8 bar)

*@ 100º F | 38º C

Other Simplex Industrial Basket Strainers

EATON Model 30R Simplex Basket Strainers

EATON Model 72L Tefzel Plastic Lined Basket Strainers

EATON Model 72SL Steam Jacketed Basket Strainers

EATON Model 73 Straight Flow Basket Strainers

EATON Model 510 Multi-Basket Strainers

EATON 72 Simplex Basket Strainers

Join our Mailing List

Resources

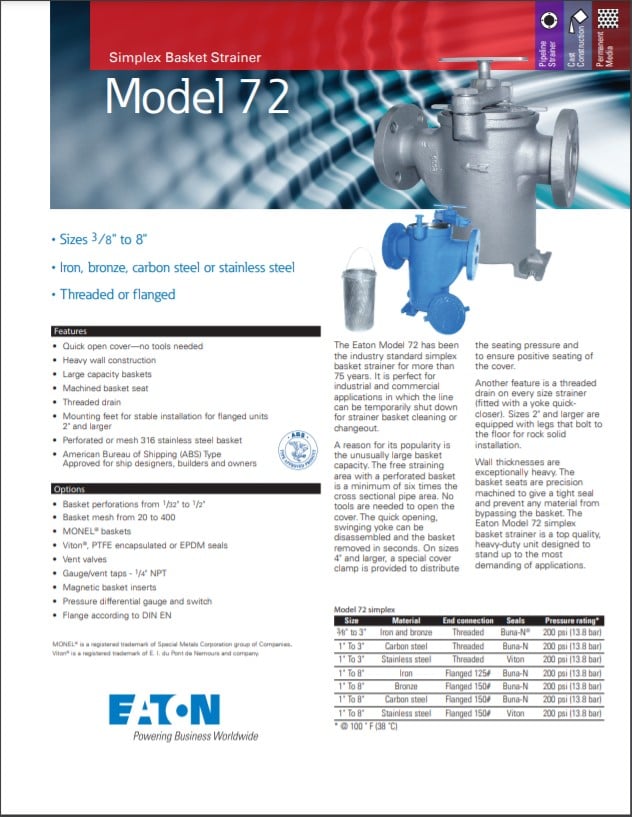

EATON 72 Simplex Basket Strainers
