Adjustable Ball Fittings Nozzle Accessories
Since BETE’s founding in 1950, they have developed an enviable reputation for our willingness to modify nozzles to meet customer requirements. As a result, a wide variety of special-purpose units have become “standards” in the BETE line while remaining “specials” with competitors. Some are newly patented; some are improvements of long-known concepts. All of the products in this catalog can be changed if desired. BETE Fog Nozzle is always ready to produce proprietary items and will use your imprint if you wish. John Brooks Company carries the full line of Bete products including the Bete SJ Swivel Joint Nozzle.

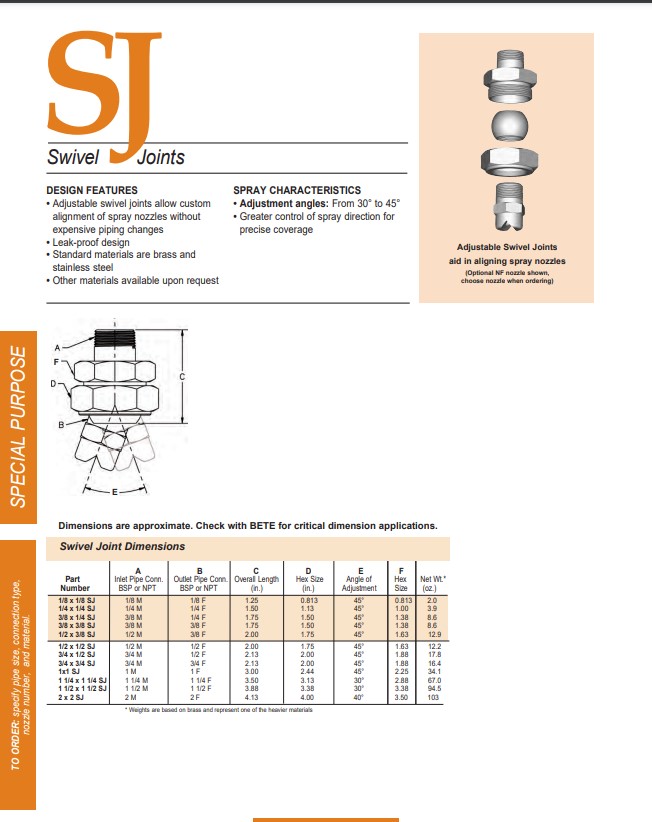

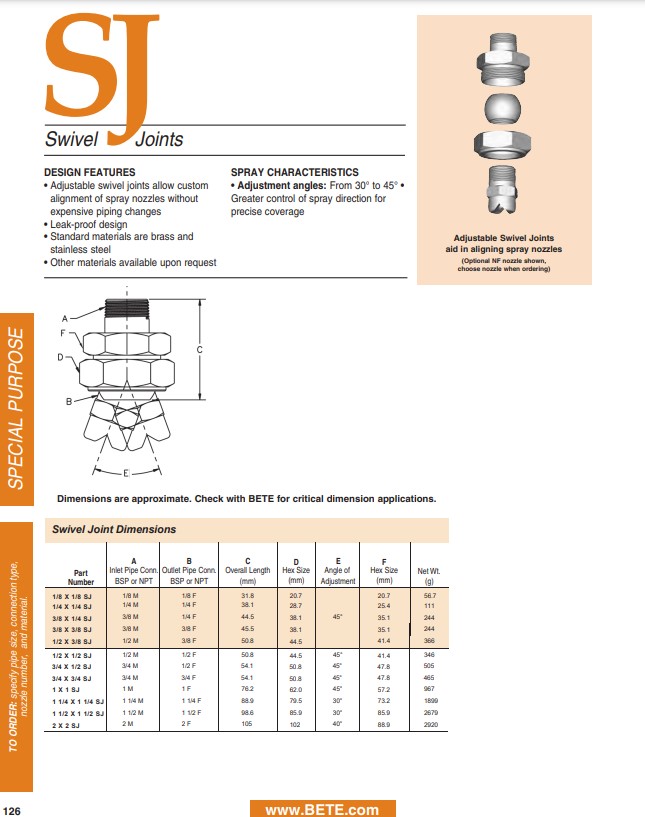

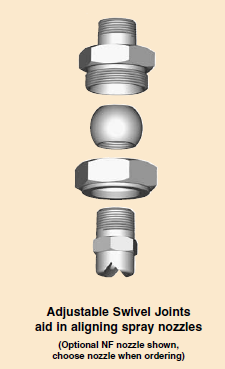

Design Features of the Bete SJ Swivel Joint Nozzle:
- Adjustable swivel joints allow custom alignment of spray nozzles without expensive piping changes
- Leak-proof design
- Greater control of the spray direction for precise coverage
- Provide flexibility in nozzle positioning
- Allow easy targeting of the spray to exactly the correct area
- Work with any nozzle that has pipe threads
- 1″ size and below are rated to a minimum 1000 psi
- Standard materials are brass and stainless steel
- Other materials available upon request
Spray Characteristics of the Bete SJ Swivel Joint Nozzle:
| Available Spray Angles: | Spray angle adjustment from 30° to 45° |
| Available Connection Types: | Refer to datasheet |
| Materials: | Brass, Stainless Steel |
