Alfa Laval TJ40G Rotary Jet Heads

Effective Hygienic Tank Cleaning with Low Operating Costs

Alfa Laval TJ40G Rotary Spray Heads provide 3D indexed impact cleaning over a defined period.

Used in breweries, food and dairy processes and many other industries with a strict demand for hygienic tank cleaning. The device is suitable for processing, storage tanks and vessels with diameters between 15 and 45 feet  and industries that require a certain level of hygienic design.

Product Benefits

  • 60% faster cleaning = more time for production
  • High impact cleaning in a 360° repeatable cleaning pattern
  • Control of CIP through validated cleaning
  • Saves up to 70% of your cleaning cost
  • Hygienic safety by reliable and predictable cleaning performance

The high mechanical force generated by the strong jet impingement, efficiently removes products and residues to provide the best hygienic conditions required for production.

Comparison

Static Spray Ball Alfa Laval TJ40G

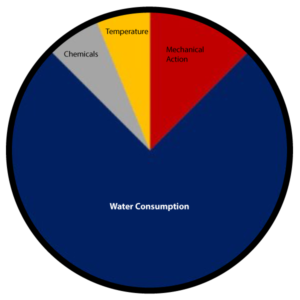

Alfa-Laval-TJ-40G-C1Static-Spray-Ball-300x300

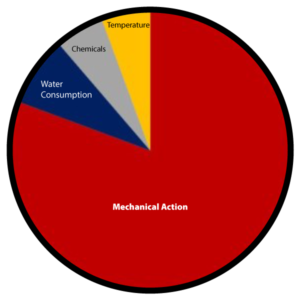

Alfa-Laval-TJ-40G-C2-300x300



    Blue = Water consumption/time
    Red = Mechanical action
    Yellow = Temperature
    Grey = Chemicals

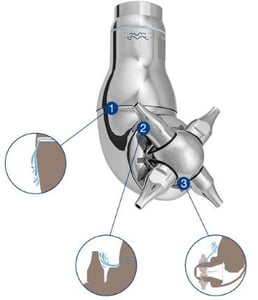

Tank cleaning machine with complete self-cleaning system

Not only does the Alfa Laval TJ range of Rotary Jet Heads provide spotless cleaning of the tank interior, it also cleans itself – inside and out. Its hygienic self-cleaning construction ensures that the flow of the cleaning fluid reaches the external surfaces of the rotary jet head. This reduces the risk of cross contamination and potentially product loss or recalls.

  1. Overlap Ensures Self-Cleaning of the Body
  2. The Nozzle’s Concave Shape Ensures Self-Cleaning of the Nozzle Itself
  3. Through Two Holes in the Hub, Jet Streams Ensure Cleaning of the Cone
Alfa-Laval-TJ-40G-Self-Cleaning







Resources

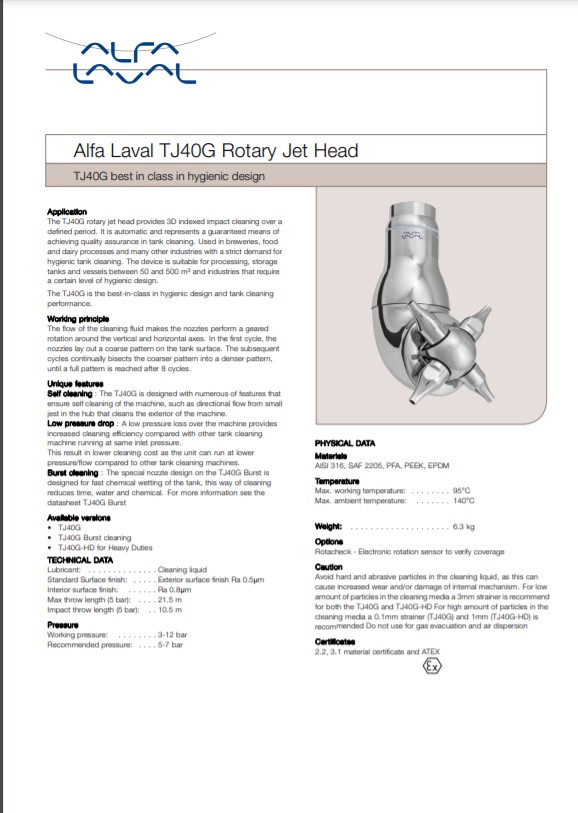

Alfa Laval TJ 40G Product Brochure

Alfa Laval TJ 40G Product Brochure

Download

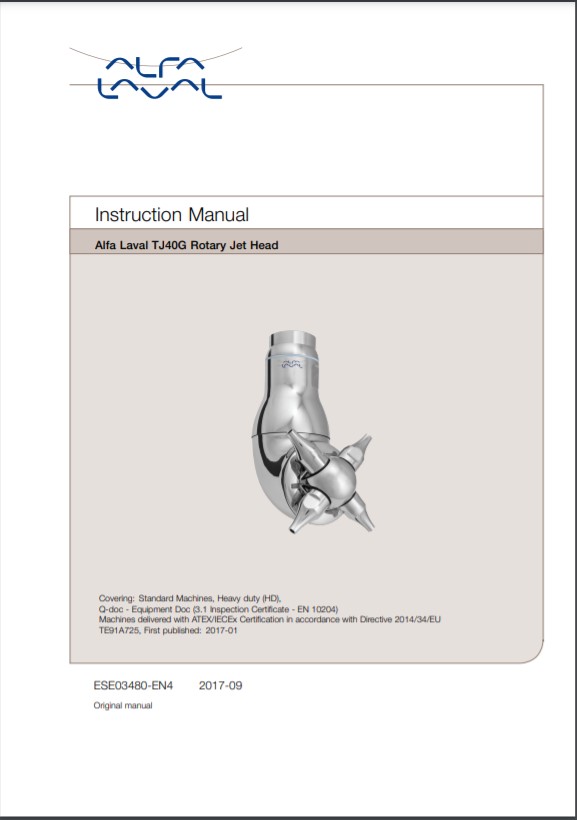

Alfa Laval TJ 40G - Manual

Alfa Laval TJ 40G - Manual

Download
