ABZ Valve products are available in a wide variety of sizes and functions.  Their resilient seated and high performance butterfly valves range from 2-48 inches with 150-600 psi. From general purpose to high performance pneumatic and electric, ABZ valves withstand difficult fluid compositions and high-temperature applications. The design of the ABZ Valve makes it an ideal choice for manual or automated actuation and is used for industrial, chemical, HVAC, and food and beverage applications. ABZ Valves can be actuated to fit any of your projects or design specifications.

ABZ Valve – Valves

1 CD Series Wafer Dual Door Check Valve

  • One-piece body constructed per API 594 standards.
  • Rubber seats are installed using an innovative bonding process.
  • Heavy duty and corrosion resistant shaft.
  • Thrust washers are used between all moving wear points.
  • Broad range of construction materials are available.


Click to Download Brochure

1-CD-Series-Wafer-Dual-Door-Check-Valve

090 Resilient Seated Butterfly Valve – Wafer Style Body

2″ to 12″ – 150 psi

  • Two-Piece body.
  • One-Piece disc/stem.
  • The special snap-on Resil-O-Seat™ fixes seat in place without bonding. The Resil-O-Seat™ is 100% field replaceable so no special tools are required. The Resil-O-Seat™ forms a seal against all standard ANSI 125/150 flanges and eliminates gasketing requirements. Available in various materials including Teflon®.
  • Disc available in standard trim stainless steel, Buna-N covered, or EPDM.  Other materials upon request.
  • Thin profile disc for excellent flow characteristics.


Click to Download Brochure

ABZ Valve 090 Wafer Style Butterfly Valve

929 Resilient Seated Butterfly Valve – Full-Lugged Style Body

2″ to 12″ – 150 psi

  • Split body.
  • One-Piece disc/stem.
  • The special snap-on Resil-O-Seat™ fixes seat in place without bonding. The Resil-O-Seat™ is 100% field replaceable so no special tools are required. The Resil-O-Seat™ forms a seal against all standard ANSI 125/150 flanges and eliminates gasketing requirements. Available in various materials including Teflon®.
  • Disc available in standard trim stainless steel, Buna-N covered, or EPDM.  Other materials upon request.
  • Thin profile disc for excellent flow characteristics.
  • Meets ANSI 125/150 pound drilling.


Click to Download Brochure

ABZ Valve 929 Full Lug Style Butterfly Valve

101 Resilient Seated Butterfly Valve – Wafer Style Body

2″ to 12″ – 175 psi

  • One-Piece body, through-shaft design.
  • Stainless steel cap screw secures disc to stem.
  • Long neck for insulation requirements.
  • The special snap-on Resil-O-Seat™ fixes seat in place without bonding. The Resil-O-Seat™ is 100% field replaceable so no special tools are required. The Resil-O-Seat™ forms a seal against all standard ANSI 125/150 flanges and eliminates gasketing requirements. Available in EPDM, Buna-N or other materials upon request.
  • Disc made of ductile iron, aluminum bronze, 316 stainless steel.


Click to Download Brochure

ABZ 101 Wafer Style Butterfly Valve

102 Resilient Seated Butterfly Valve – Full-Lugged Style Body

2″ to 12″ – 175 psi

  • One-Piece body, through shaft design.
  • Stainless steel cap screw secures disc to stem.
  • Long neck for insulation requirements.
  • The special snap-on Resil-O-Seat™ fixes seat in place without bonding. The Resil-O-Seat™ is 100% field replaceable so no special tools are required. The Resil-O-Seat™ forms a seal against all standard ANSI 125/150 flanges and eliminates gasketing requirements. Available in EPDM, Buna-N or other materials upon request.
  • Disc made of ductile iron, aluminum bronze, 316 stainless steel.
  • Meets ANSI 125/150 pound drilling.


Click to Download Brochure

ABZ 102 Fully Lugged Style Butterfly Vale

108 Resilient Seated Butterfly Valve – Semi-Lugged Style Body

2″ to 12″ – 175 psi

  • One-Piece body, through shaft design.
  • Stainless steel cap screw secures disc to stem.
  • Long neck for insulation requirements.
  • The special snap-on Resil-O-Seat™ fixes seat in place without bonding. The Resil-O-Seat™ is 100% field replaceable so no special tools are required. The Resil-O-Seat™ forms a seal against all standard ANSI 125/150 flanges and eliminates gasketing requirements. Available in EPDM, Buna-N or other materials upon request.
  • Disc made of ductile iron, aluminum bronze, 316 stainless steel.


Click to Download Brochure

ABZ 108 Semi Lugged Butterfly Valve

909 Resilient Seated Butterfly Valve – Wafer Style Body

2″ to 12″ – 150 psi

  • Two-Piece body.One-piece disc/stem with Teflon® covered disc.
  • Thin profile disc for excellent flow characteristics.
  • The special snap-on Resil-O-Seat™ fixes seat in place without bonding. The Resil-O-Seat™ is 100% field replaceable so no special tools are required. The molded O-ring in Teflon® forms a seal against all standard ANSI 125/150 flanges and eliminates gasketing requirements. The Resil-O-Seat™ is made of Teflon® for applications in chemical and food industries.


Click to Download Brochure

ABZ 909 Wafer Style

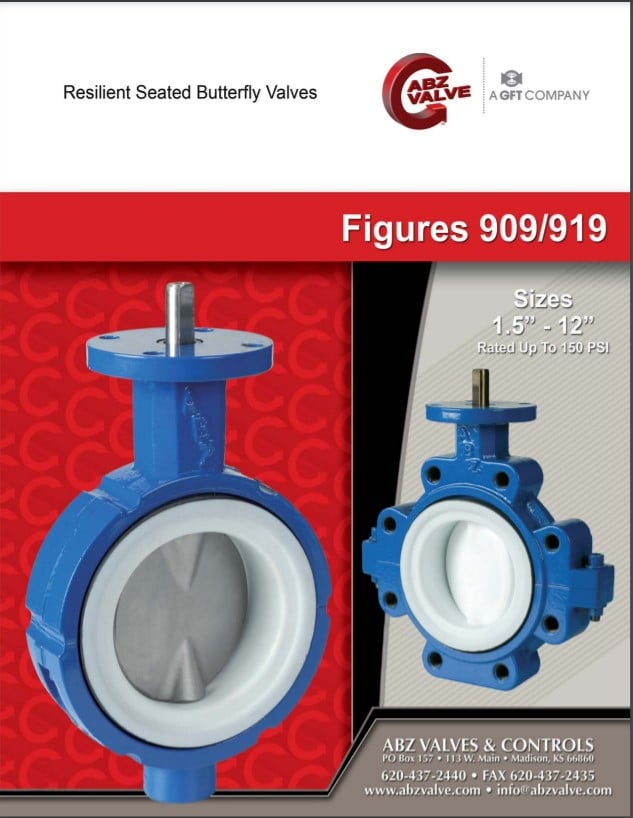

919 Resilient Seated Butterfly Valve – Full-Lugged Style Body

2″ to 12″ – 150 psi

  • Two-Piece body.
  • One-piece disc/stem with Teflon® covered disc.
  • Thin profile disc for excellent flow characteristics.
  • The special snap-on Resil-O-Seat™ fixes seat in place without bonding. The Resil-O-Seat™ is 100% field replaceable so no special tools are required. The molded O-ring in Teflon® forms a seal against all standard ANSI 125/150 flanges and eliminates gasketing requirements. The Resil-O-Seat™ is made of Teflon® for applications in chemical and food industries.
  • Meets ANSI 125/150 pound drilling.


Click to Download Brochure

ABZ 919 Split Body with Full Lugs

201 Resilient Seated Butterfly Valve – Wafer Style Body

14″ to 20″ – 150 psi

  • One-Piece body.
  • Stub shaft design with internal drive (stems removable and replaceable with no special tools).
  • The special snap-on Resil-O-Seat™ fixes seat in place without bonding. The Resil-O-Seat™ is 100% field replaceable so no special tools are required. The Resil-O-Seat™ forms a seal against all standard ANSI 125/150 flanges and eliminates gasketing requirements. Available in EPDM, Buna-N or other materials upon request.
  • Disc made of ductile iron, coated ductile iron, 316 stainless steel.


Click to Download Brochure

ABZ 201 Style Bare Stem

202 Resilient Seated Butterfly Valve – Full Lugged-Style Body

14″ to 20″ – 150 psi

  • One-Piece body.
  • Stub shaft design with internal drive (stems removable and replaceable with no special tools).
  • The special snap-on Resil-O-Seat™ fixes seat in place without bonding. The Resil-O-Seat™ is 100% field replaceable so no special tools are required. The Resil-O-Seat™ forms a seal against all standard ANSI 125/150 flanges and eliminates gasketing requirements. Available in EPDM, Buna-N or other materials upon request.
  • Disc made of ductile iron, coated ductile iron, 316 stainless steel.


Click to Download Brochure

ABZ 202

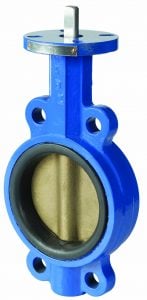

396 Resilient Seated Butterfly Valve – Semi-Lugged Style Body

Locating Holes not Tapped

2″ to 72″ – 250 psi

  • One-Piece body.
  • Stub shaft design with internal drive (stems removable and replaceable with no special tools).
  • Bonded seat design with either EPDM or Buna-N. Other materials available upon request.
  • Great for dead-end service.
  • Long neck for insulation requirements.
  • Disc made of Nickle plated ductile iron, aluminum bronze, and 316 stainless steel.


Click to Download Brochure

ABZ 396

397 Resilient Seated Butterfly Valve – Fully-Lugged Style Body

  • 2″ to 72″ – 250 psi
  • One-Piece body.
  • Stub shaft design with internal drive (stems removable and replaceable with no special tools).
  • Bonded seat design with either EPDM or Buna-N. Other materials available upon request.
  • Great for dead-end service.
  • Long neck for insulation requirements.
  • Disc made of Nickle plated ductile iron, aluminum bronze, and 316 stainless steel.
  • Meets ANSI 125/150 pound drilling.


Click to Download Brochure

ABZ 397

ABZolute Seal Series 400 – Double Offset High Performance Butterfly Valves

2″ to 72″ – ANSI 150|300|600

  • Soft Seated, metal seated and fire safe.
  • Free floating seat design. API 609, API 598, API 607, MSS-SP-68.
  • Underneath Drawn Gland Packing.
  • Wafer, Lugged, Double Flanged, Butt-Welded in double and triple offset design.
  • Direct mount operation.


Click to Download Brochure

ABZ Valve ABZolute Seal Series 400 Double Offset High Performance Butterfly Valves

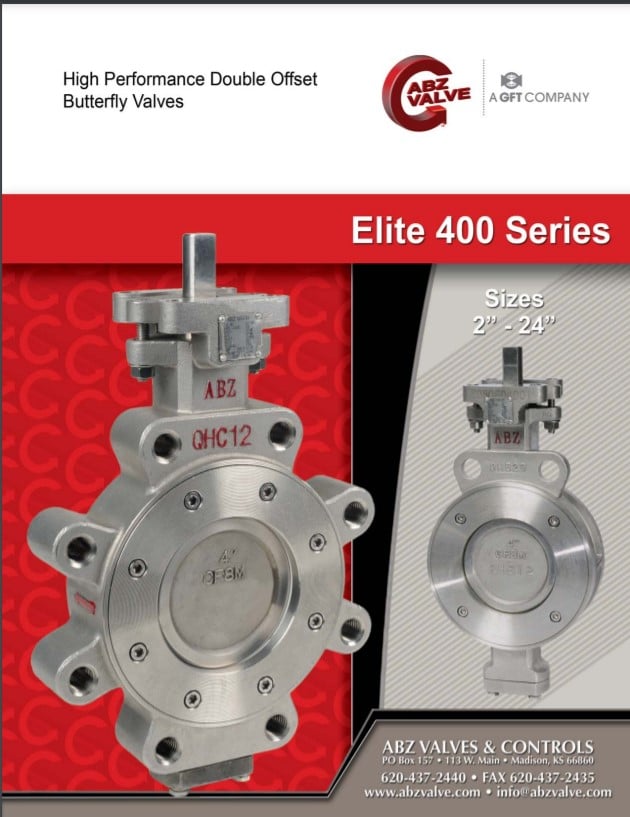

Elite Series 400 – Double Offset High Performance Butterfly Valves

2″ to 24″ – ANSI 150|300

  • Soft Seated.
  • Free floating seat design. API 609, API 598, API 607, MSS-SP-68.
  • Underneath Drawn Gland Packing.
  • Wafer, Lugged design.
  • Direct mount operation.


Click to Download Brochure

ABZ Elite 400 Series Double Offset High Performance Butterfly Valves

Extreme 6000 Series – Triple Offset Metal Seated Butterfly Valve

2″ to 60″ – ANSI 150|300|600

  • Field Repairable Body & Disc Seats
  • Designed in accordance with API 609, API 598, API 607
  • Wafer, Lug, Double Flanged, Butt Weld, Short & Long Gate Valve Takeout,
  • Cryogenic and High Temperature Options Available.


Click to Download Brochure

ABZ Extreme 6000 Series Triple Offset Metal Seated Butterfly Valve

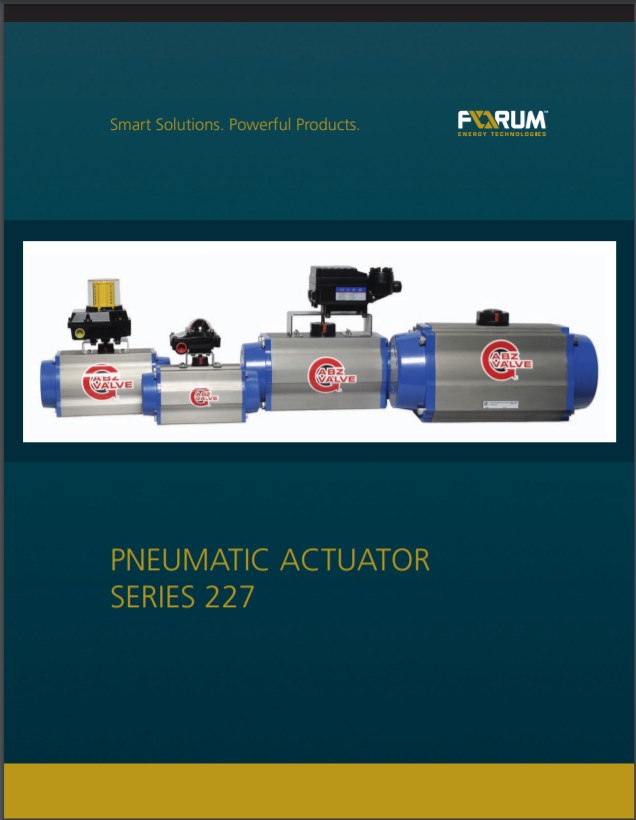

227 Series – Pneumatic Rack & Pinion Actuator

  • Rack and pinion design.
  • Spring return and double acting operation.
  • Direct mount actuation.
  • Permanently lubricated units.
  • 40 psi through 150 psi air supply range.


Click to Download Brochure

ABZ Series 227 Pneumatic Rack - Pinion Design

228 Series – Pneumatic Rack & Pinion Actuator

  • Rack and pinion design.
  • Spring return and double acting operation.
  • Direct mount actuation.
  • Permanently lubricated units.
  • 40 psi through 150 psi air supply range.


Click to Download Brochure

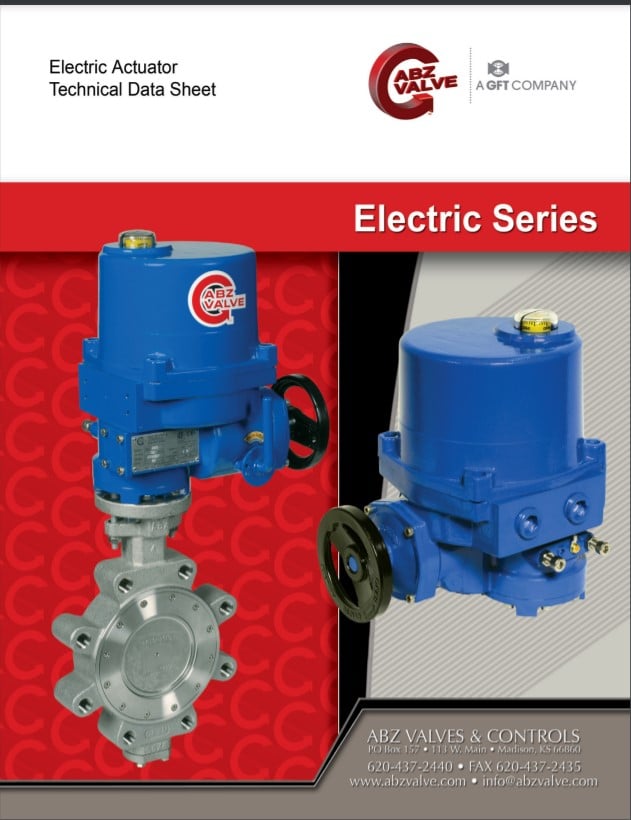

Electric Actuator

  • CSA Certified.
  • Worm gear drive.
  • Manual override.
  • Direct mount.
  • Two position and modulating.


Click to Download Brochure

ABZ Electric Actuator


ABZ High Performance Butterfly Valves from John Brooks Company


Resources

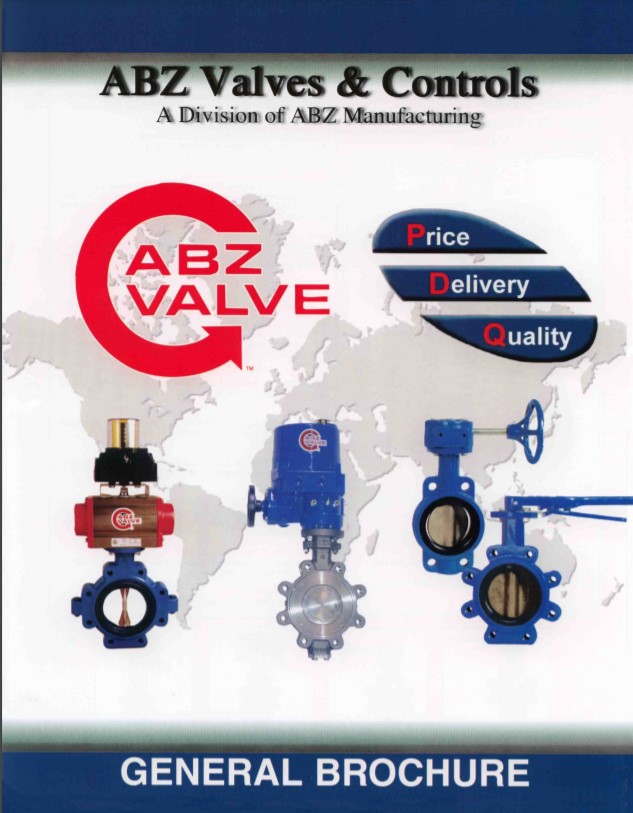

ABZ Valve General Brochure

Download
Size: 2 MB

ABZ Valve 1CD Wafer Dual Door Check Valve

Download
Size: 773 KB

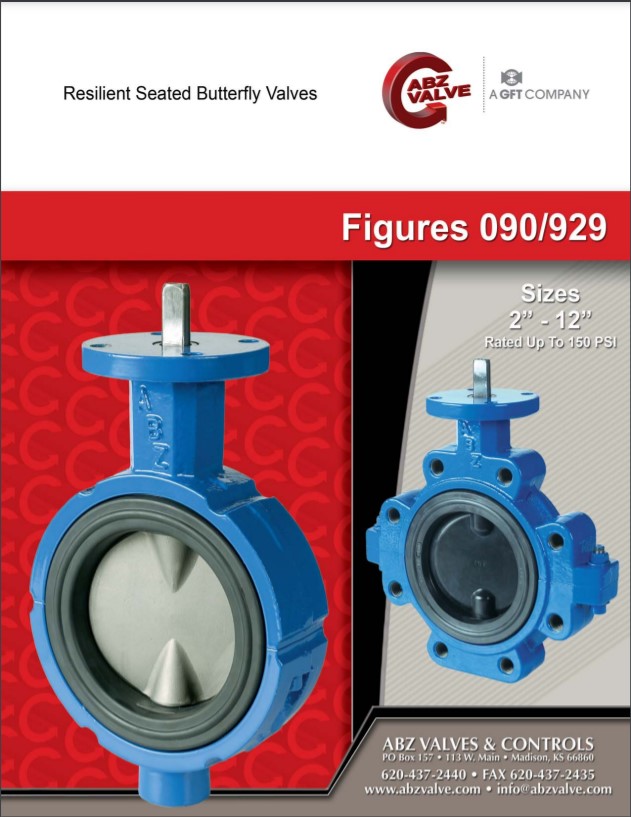

ABZ Valve 090-929 Resilient Seated Butterfly Valves

Download
Size: 865 KB

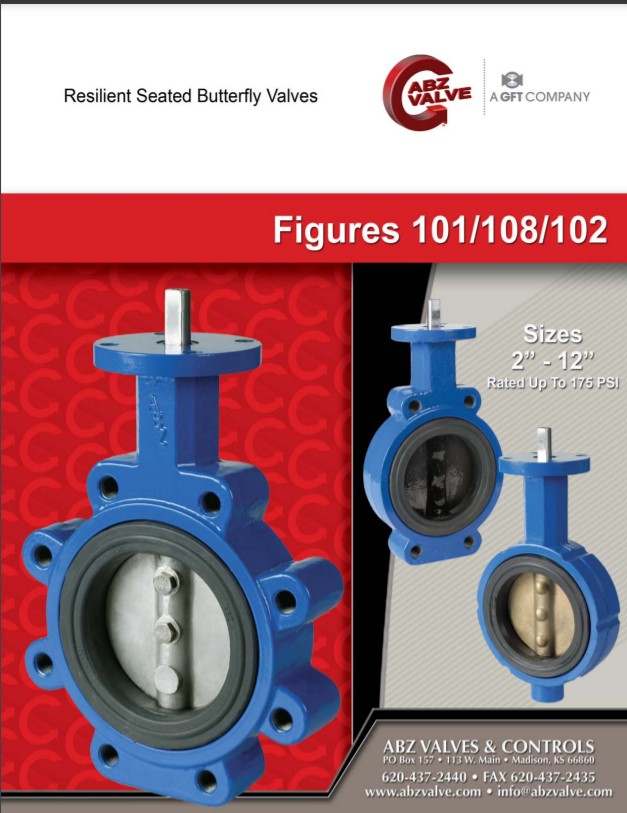

ABZ Valve 101-102-108 Resilient Seated Butterfly Valves

Download
Size: 884 KB

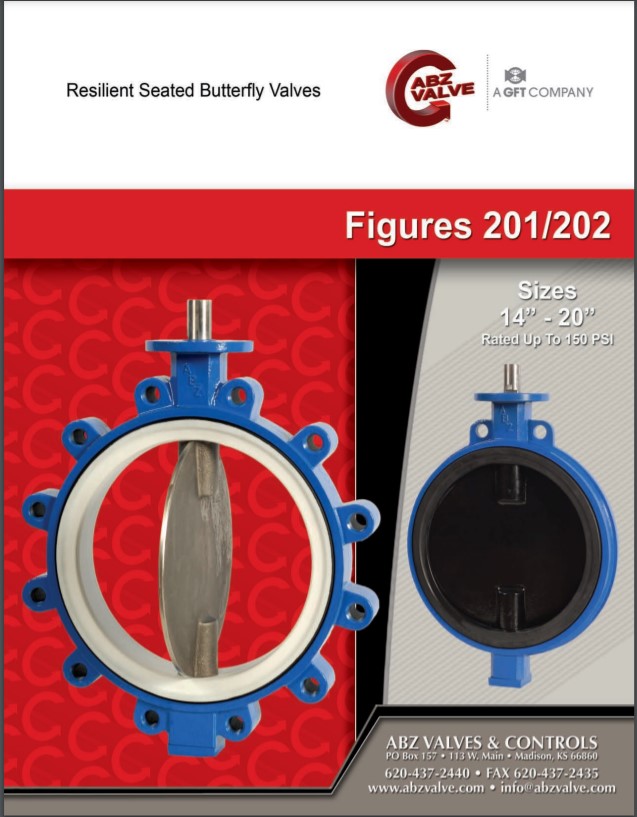

ABZ Valve 201-202 Resilient Seated Butterfly Valves

Download
Size: 3 MB

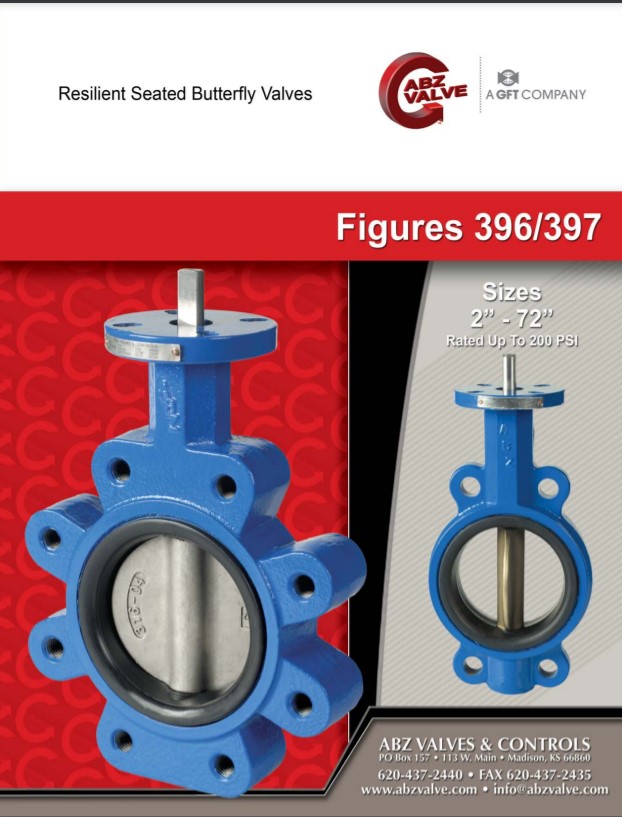

ABZ Valve 396-397 Resilient Seated Butterfly Valves

Download
Size: 931 KB

ABZ Valve 909-919 Resilient Seated Butterfly Valves

Download
Size: 894 KB

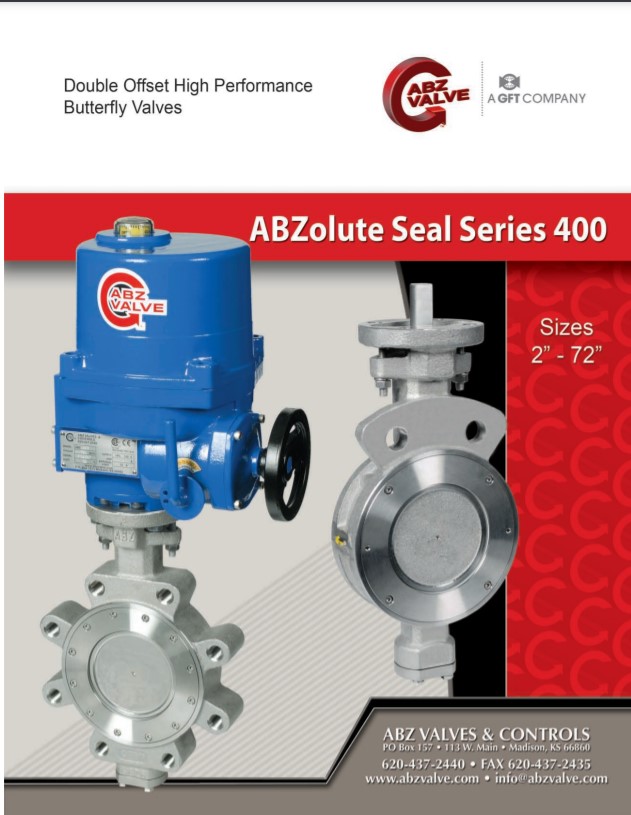

ABZ Valve ABZolute Seal Series 400 Double Offset High Performance Butterfly Valves

Download
Size: 2 MB

ABZ Valve Elite 400 Series Double Offset High Performance Butterfly Valves

Download
Size: 791 KB

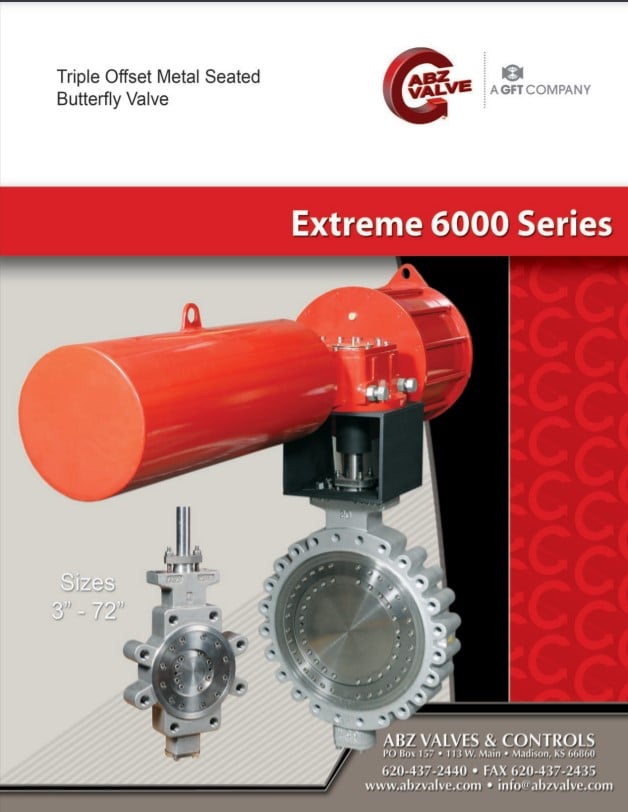

ABZ Valve Extreme 6000 Series Triple Offset Metal Seated Butterfly Valve

Download
Size: 3 MB

ABZ Valve Electric Actuator

Download
Size: 3 MB

ABZ Valve Series 227 Pneumatic Actuator

Download
Size: 1 MB

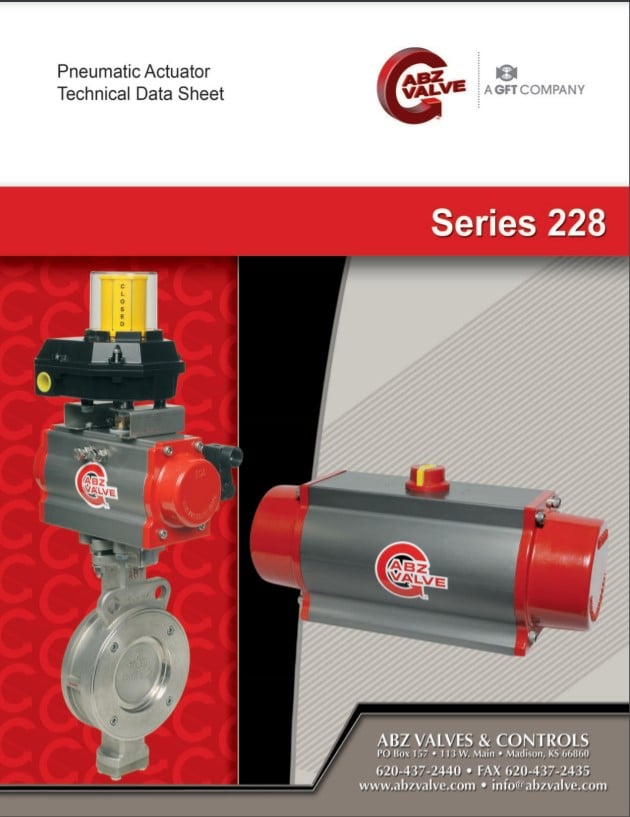

ABZ Valve Series 228 Pneumatic Actuator Technical Data Sheet
