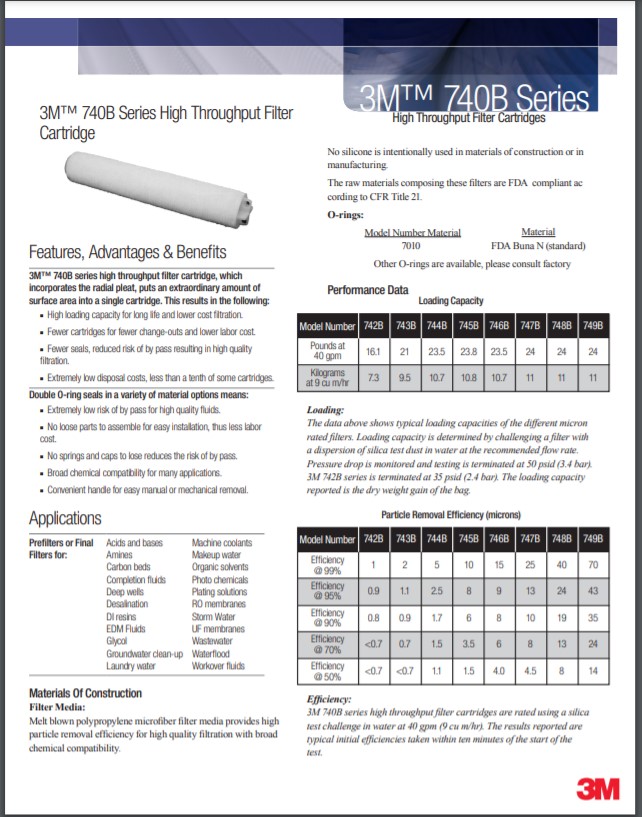

3M 740 Series Filter Cartridges – 740B and 740K are used in applications with high contaminant reduction requirements. The high efficiency, outside-to-inside flow direction with large diameter, pleated media permits high flow rates.
3M 740 series cartridges are used in filter housings that accept 6.5 inch/165 mm outside diameter, 40 inch/1016 mm length filter cartridges with 226 o-ring connections. Polypropylene microfiber forms the basis of the filtration media we use in the 740 series filter cartridges. Our manufacturing processes allow for tightly controlled specifications resulting in a filter media with consistent and predictable particle retention characteristics. We offer 740 series cartridges in micron ratings ranging from 1 to 70 microns (@ 99.9% Particle Removal Efficiency). Polypropylene provides broad chemical compatibility for use in a variety of applications.
3M 740 series cartridges are available in two configurations – “B” and “K.”
The “B” versions contain the maximum amount of filter media surface area for those applications where high contaminant holding capacity is needed.
The “K” versions contain an optimized amount of filter media surface area (60% – 70% of ‘B” versions) for those applications that benefit from a low unit cost filter design.
In “B” and “K” versions, the microfiber media is pleated in a compound radial design that optimizes the usable surface area of the filter cartridges. The 740 series cartridges also incorporate polypropylene end caps, outer sleeves and cores to protect the pleat structure and provide durability. A double o-ring seal helps reduce the risk of fluid bypass.
