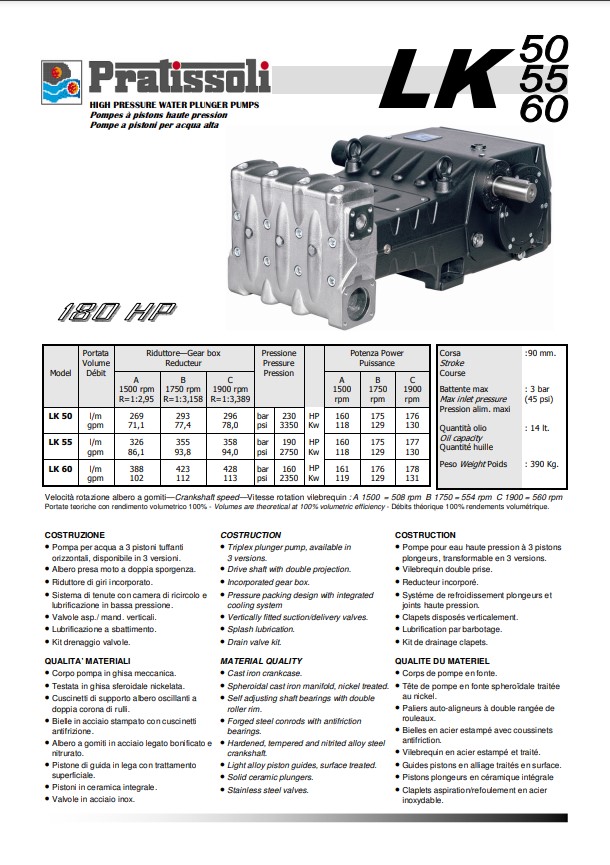

    Pratissoli LK Series Triplex Plunger Pumps

    Pratissoli LK Series Triplex Plunger Pumps



    Construction
    Triplex plunger pump, available in3 versions. Drive shaft with double projection. Incorporated gear box. Pressure packing design with integratedcooling system Vertically fitted suction/delivery valves. Splash lubrication. Drain valve kit.
    Material quality
    Cast iron crankcase. Spheroidal cast iron manifold, nickel treated. Self adjusting shaft bearings with doubleroller rim. Forged steel conrods with antifrictionbearings. Hardened, tempered and nitrited alloy steelcrankshaft. Light alloy piston guides, surface treated. Solid ceramic plungers. Stainless steel valves.

    Pump Model
    Volume
    Pressure
    		 Power rpm Weight Kg. Dimensions mm.
    L/min GPM bar psi kW HP
    LK 36 140 37 400 5800 118 161 1500 373 929,5x672x386,5
    LK 36 152 40,2 400 5800 118 161 1750 373 929,5x672x386,5
    LK 36 154 40,7 400 5800 118 161 1900 373 929,5x672x386,5
    LK 40 173 45,7 350 5075 127 173 1500 373 929,5x672x386,5
    LK 40 188 49,7 350 5075 127 173 1750 373 929,5x672x386,5
    LK 40 190 50,2 350 5075 127 173 1900 373 929,5x672x386,5
    LK 45 218 57,6 280 4060 129 176 1500 373 929,5x672x386,5
    LK 45 238 62,9 280 4060 129 176 1750 373 929,5x672x386,5
    LK 45 241 63,7 280 4060 129 176 1900 373 929,5x672x386,5
    LK 50 269 71,1 230 3335 130 177 1500 383 941,5x672x406
    LK 50 294 77,7 230 3335 130 177 1750 383 941,5x672x406
    LK 50 297 78,5 230 3335 130 177 1900 383 941,5x672x406
    LK 55 326 86,1 190 2755 131 178 1500 383 941,5x672x406
    LK 55 355 93,8 190 2755 131 178 1750 383 941,5x672x406
    LK 55 360 95,1 190 2755 131 178 1900 383 941,5x672x406
    LK 60 388 102,5 160 2320 131 178 1500 383 941,5x672x406
    LK 60 423 111,8 160 2320 131 178 1750 383 941,5x672x406
    LK 60 428 113,1 160 2320 131 178 1900 383 941,5x672x406
