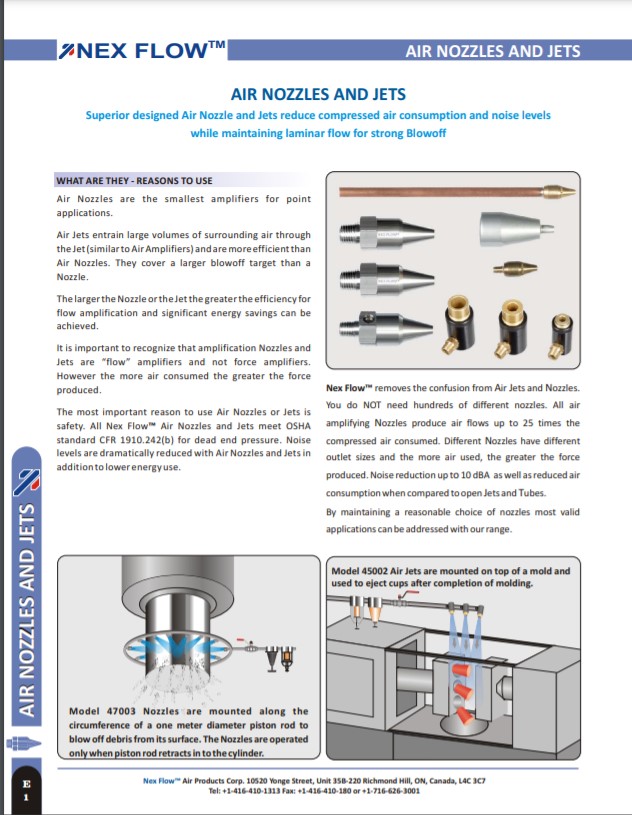

Nex Flow
air nozzles are designed to fit into small spaces.
We have an adjustable nozzle for some applications and then a few different nozzles with varying force, depending on the application.

Model 47001
Air Nozzles–
is a small brass nozzle to fit into small spots and used by many machine builders for blow-off applications.

Micro 49001 Micr0 Air Nozzle
– The Model 49001 Nex Flow brass nozzle is a Micro Air Nozzle for blowoff.

Model 47002 Air Nozzles
–
is the small Model 47001 brass nozzle added to a copper tube. Machine builders can bend the copper tube and aim the nozzles to where ever it suits. The copper tube is simply press fit into the customer’s system.

Model 47003 (anodized aluminum) Model 47003S (303/304 stainless steel) and Model 47003S-316L (316L stainless steel) Air Nozzles
–This is a common standard strength nozzle with a 1/8” male NPT connection and ideal for most blow-off applications involving liquids.
It is made of aluminum (or stainless steel) and is partially anodized for longer life. The coanda profile is made for excellent noise reduction and blow-off force at a good distance.

Model 47004
(anodized aluminum) Model 47004S (303/304 stainless steel) and Model 47004S-316L (316L stainless steel)
Air Nozzles
–This is another common but stronger force nozzles with a 1/4” male NPT connection and ideal for most blow-off applications involving liquids and even light weight parts.
It is made of aluminum (or stainless steel) and is partially anodized for longer life. Again the coanda profile is made for excellent noise reduction and blow-off force at a good distance.

Model 47009 (anodized aluminum) Model 47009S (303/304 stainless steel) and Model 47009S-316L (316L stainless steel) Air Nozzles
–This is similar to the 47003 except it is made adjustable. The Superior design of the adjustable set screw is made to adjust the nozzles within its weakest and strongest ranges.

Applications Include

• Engineered Compressed Air Technology for Blowoff, Cooling, Cleaning and Static control.

Interchangeable With

• Exair
• Silvent
