Today’s pumping applications demand better and more efficient self-priming, solids-handling pumps. At Gorman-Rupp, providing greater performance and reducing installation and maintenance costs have always been their ultimate goals. This makes the Ultra V one of the best values introduced to the pump industry in decades. This next generation of solids-handling, self-priming centrifugal pumps offers substantially higher pressures, flows, efficiencies and time-saving maintenance features, all in one package.

Gorman-Rupp Ultra V Self-Priming Pumps achieve up to 60% increased pressure and 40% increased flow over traditional self-priming trash pumps of the same size, while substantially increasing overall pumping efficiency.

Sizes

  • 3″ (75 mm)
  • 4″ (100 mm)
  • 6″ (150 mm)
  • Max Capacity: 1950 GPM (123 lps)
  • Max Head: 325′ (99 m)
  • Max Solids: 3″
Item Size Casing Impeller / Rotor Drive Flange Seal
V3A60-B 4 x 3 Cast Iron Ductile Iron Basic ASA Silicon Carbide
V3B60-B 4 x 3 Cast Iron Ductile Iron Basic ASA Silicon Carbide
V4A60-B 6 x 4 Cast Iron Ductile Iron Basic ASA Silicon Carbide
V6A60-B 8 x 6 Cast Iron Ductile Iron Basic ASA Silicon Carbid



Materials of Construction

  • Cast Iron

Applications Include

  • Pumping solids
  • Pumping sludge
  • Pumping wastewater
  • Pumping industrial wastewater
  • Pumping slurries
  • Sump pump
  • Pumping drilling mud
  • Pumping frac water
  • Pumping waste oil
  • De-watering pump

Interchangeable With

  • Cornell
  • Pioneer
  • Weir Self Priming

For more information contact us at:1-877-624-5757

Ultra V Series Pump Maintenance Pt. 1 – Safety and Preventive Maintenance .



.Ultra V Series Pump Maintenance Pt. 2 – Back Cover and Wear Plate Removal .



Ultra V Series Pump Maintenance Pt. 3 – Suction Check Valve Removal



Ultra V Series Pump Maintenance Pt. 4 Rotating Assembly Removal



Ultra V Series Pump Maintenance Pt. 5 – Seal, Shaft and Bearing Removal



Ultra V Series Pump Maintenance Pt. 6 – Seal Installation



Ultra V Series Pump Maintenance Pt. 7 – Impeller Installation and Adjustment



Ultra V Series Pump Maintenance Pt. 8 – Rotating Assembly Installation .



.Ultra V Series Pump Maintenance Pt. 9 – Back Cover Installation and Adjustment .



Ultra V Series Pump Maintenance Pt. 10 – Pressure Relief Valve .



Ultra V Series Pump Maintenance Pt. 11 – Final Pump Assembly .



Resources

Gorman-Rupp Ultra V Series Self Priming Pumps

Gorman-Rupp Ultra V Series Self Priming Pumps

Download

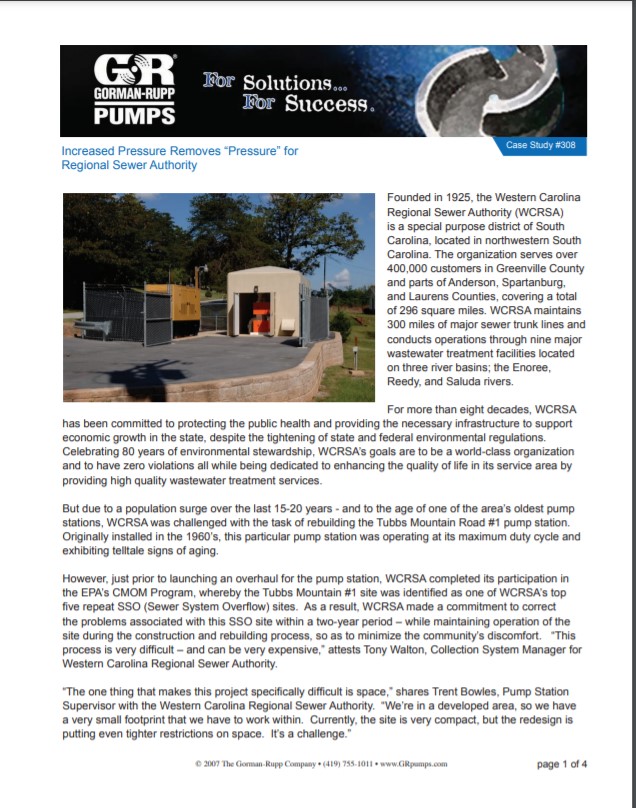

Gorman-Rupp Ultra V Series Self-Priming Pumps case study

Gorman-Rupp Ultra V Series Self-Priming Pumps case study

Download

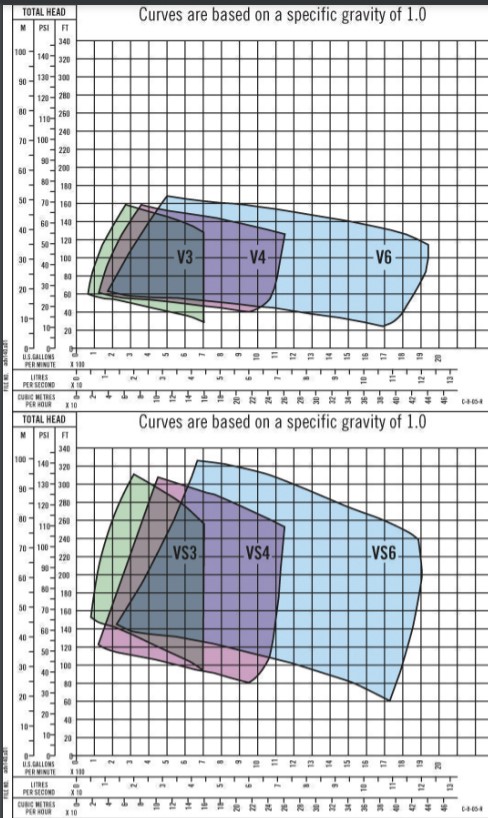

Gorman-Rupp Ultra V Series Self-Priming Pumps performance curve

Gorman-Rupp Ultra V Series Self-Priming Pumps performance curve

Download
