Gorman-Rupp PA Series Pump – Prime Aire

Gorman-Rupp PA Series Pump – Prime Aire are the perfect solution for sewage bypass operations, construction site dewatering and other applications where intermittent flow can be a problem. These units feature a patented positive priming system that virtually eliminates leaks, reducing environmental concerns and giving the unique capability to operate under flooded-suction staging conditions.

Prime Aire® Pumps feature Gorman-Rupp’s patented priming system. The system uses a venturi and compressor, eliminating the leaks associated with traditional vacuum-assisted pumps. An oversized, oil-lubricated mechanical seal allows the pump to run dry continuously without damage. For positive, reliable priming time after time, Gorman-Rupp Prime Aire pumps are the ones you can count on.

Gorman-Rupp PA Series Pump – Prime Aire Features:

Dry Run Capability: A dry run capability is designed into the Prime Aire system. An oversized, oil-lubricated mechanical seal allows the pump to run dry continuously without damage. For positive, reliable priming time after time, Gorman-Rupp Prime Aire pumps are the ones you can count on.

Dual-Suction Side Capability: Model PA6C features a removable cover plate and adjustable/replaceable wearplate.

Compressor-Over-Pump: Several popular Prime Aire models are available in a “Compressor-Over-Pump” arrangement. This innovative configuration offers a compact, flexible design while allowing ease of operation and servicing when needed.

Abrasive Handling Seal: Prime Aire pumps are equipped with oversized, mechanical, oil-lubricated, double-floating, self-aligning seals with silicon carbide rotating and stationary faces that are designed to take the wear and tear of pumping solids, slurries and other abrasives.

Standard Auto-Start Controls: Auto-Start control starts and stops the pump in response to a liquid level. The pump only starts when there is water to pump and turns itself off when the water reaches the desired level. There is never any need to waste fuel and add to costly engine overhauls.

Gorman-Rupp PA Series Pump – Prime Aire Specifications:

Size: 4″ (100 mm) 6″ (150 mm) 8″ (200 mm) 10″ (250 mm) 12″ (300 mm) 14″ (350 mm)
Max Capacity: 12,000 GPM (757 lps)
Max Head: 420′ (128 m)
Max Solids: 3.25″ (83 mm)
Max Temperature: 160 F (71 C)
Materials of Construction: Cast Iron,
Ductile Iron

Applications Include:

  • Pumping solids
  • Pumping sludge
  • Pumping wastewater
  • Pumping industrial wastewater
  • Pumping slurries
  • Sump pump
  • Pumping drilling mud
  • Pumping frac water
  • Pumping waste oil
  • De-watering pump

Interchangeable With

  • Flygt
  • Cornell
  • Pioneer
  • Weir Self Priming

Gorman-Rupp Prime Air Priming Assisted (Dry Prime) Pumps .



Resources

Gorman-Rupp Priming Assisted Pump Brochure

Gorman-Rupp Priming Assisted Pump Brochure

Download
Prime Air Plus Performance Curve

Prime Air Plus Performance Curve

Download

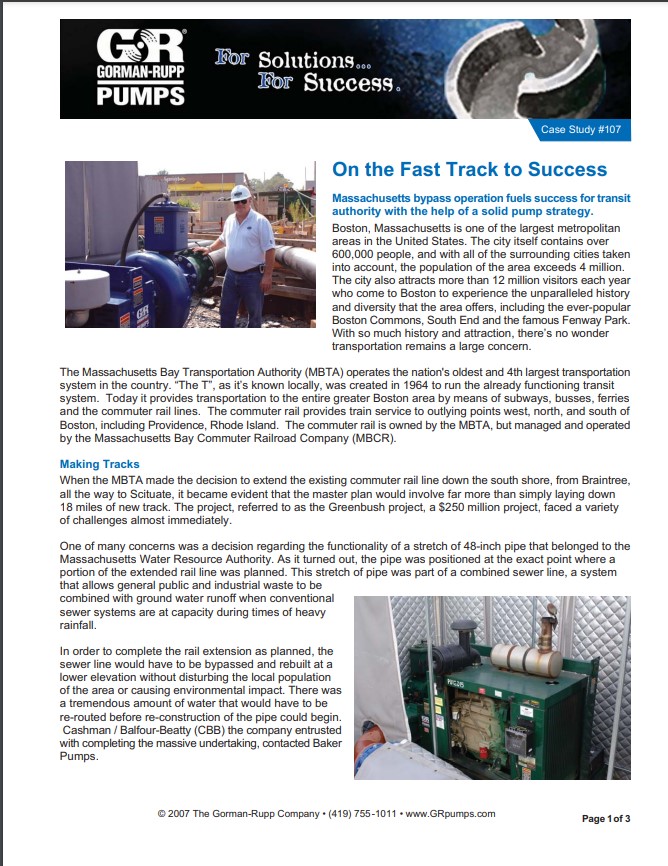

Priming Assisted Pump Case Study

Priming Assisted Pump Case Study

Download
